Xerox PHASER 6121MFP - Adf Rear Cover

8-30 Phaser 6121MFP Service Manual
Service Parts Disassembly

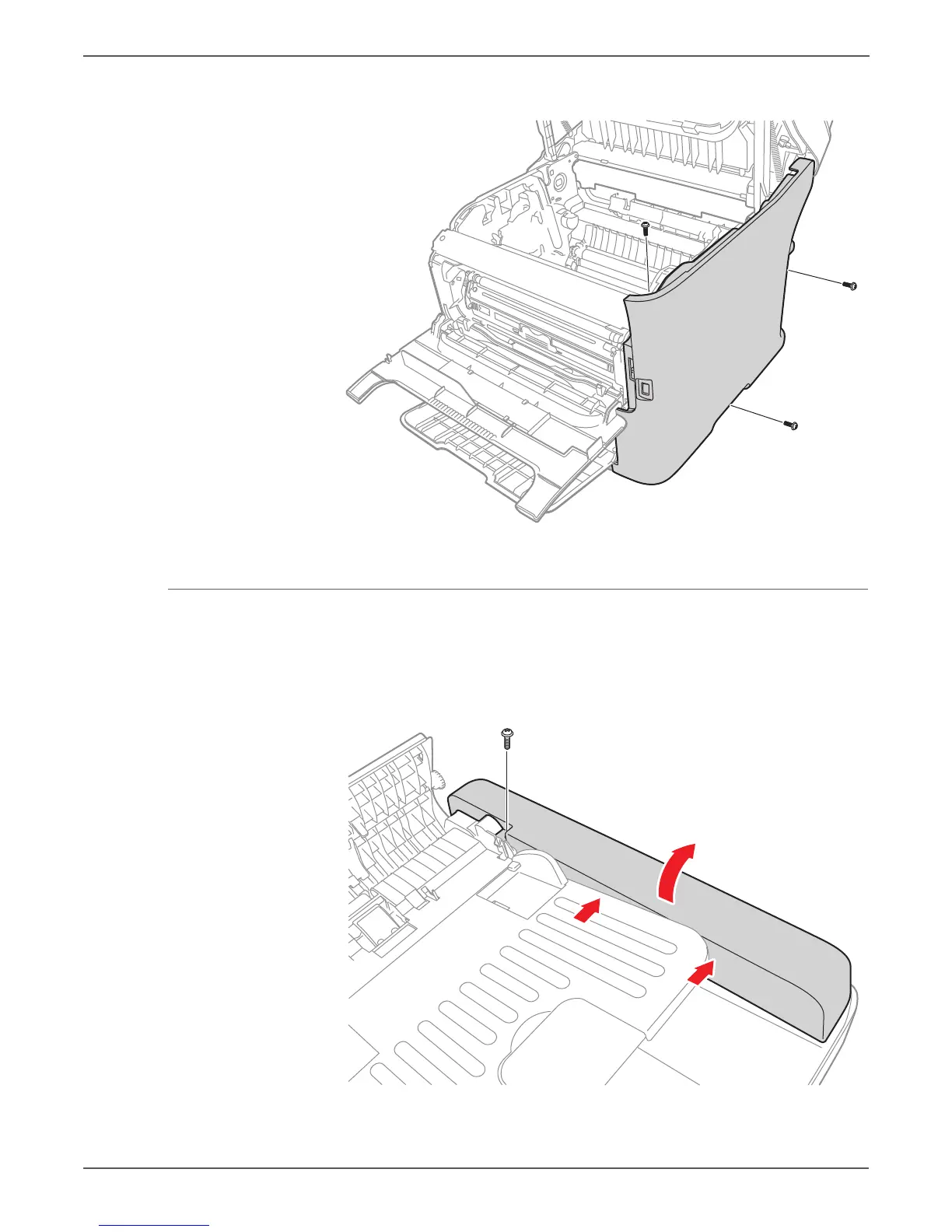

3. Remove 3 screws (metal, 10 mm) that secure the right side cover.
ADF Rear Cover
PL 1.1.5
1. Open the ADF top cover.
2. Remove 1 screw (silver, tap, 10 mm), and squeeze the ADF top cover to unhook
the 2 tabs that secure it.
s6121mfp-003
s6121mfp-008
