Phaser 6121MFP Service Manual 2-37
Theory of Operation

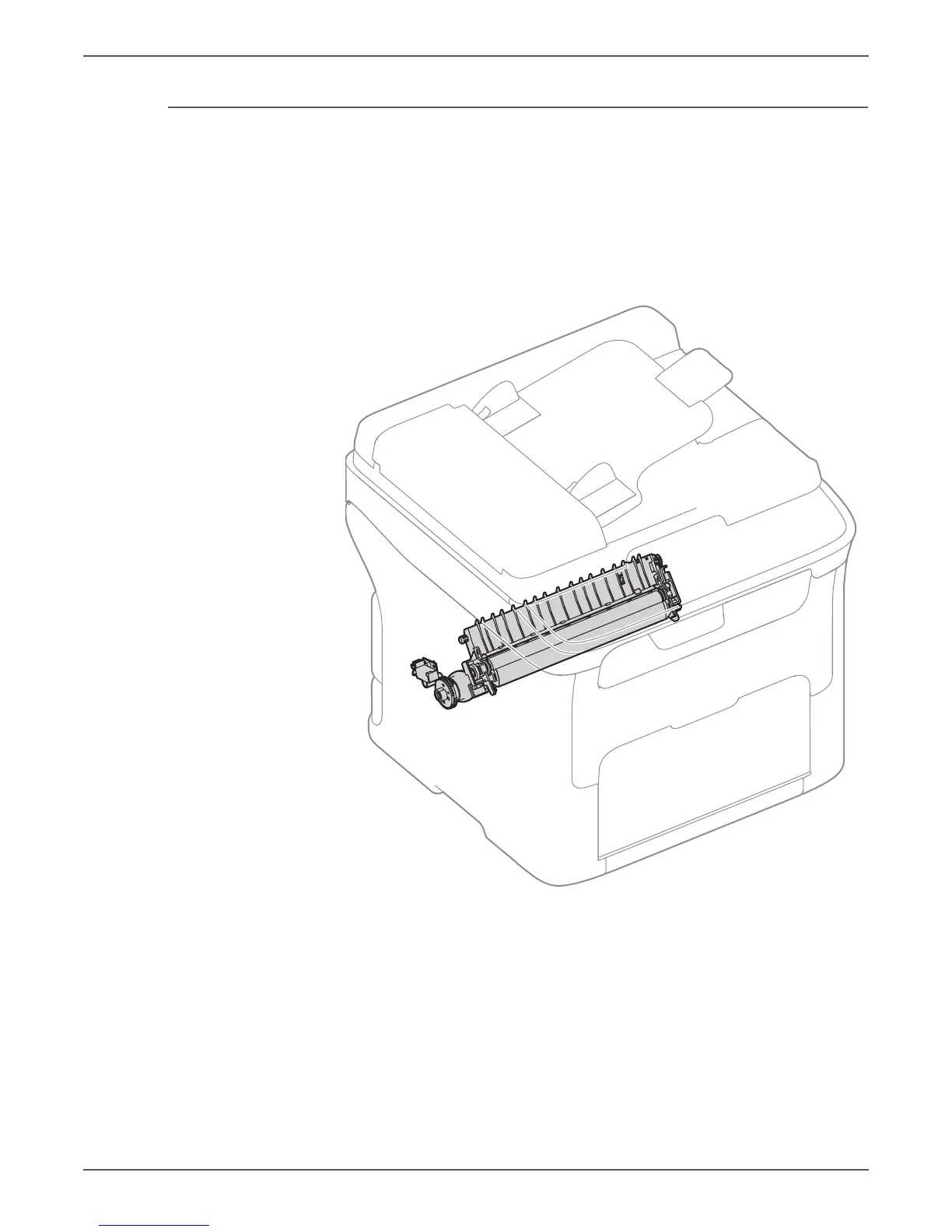

Transfer Roller
The Transfer Roller (sometimes referred to as the 2nd Transfer Roller) transfers the
developed image from the Transfer Belt to the media. To allow development of the
composite color image on the Transfer Belt, the Transfer Roller retracts from the
belt while the image is developed.
The Transfer Roller retraction operation is performed by the Main Motor, Image
Transfer Solenoid, and Transfer Roller Clutch. When the Image Transfer Solenoid is
energized, drive from the Main Motor is transmitted to the Transfer Roller Clutch.
