8-98 Phaser 6121MFP Service Manual
Service Parts Disassembly
Paper Path Guide Assembly
PL7.2.22
1. Remove the Feeder (page 8-46).

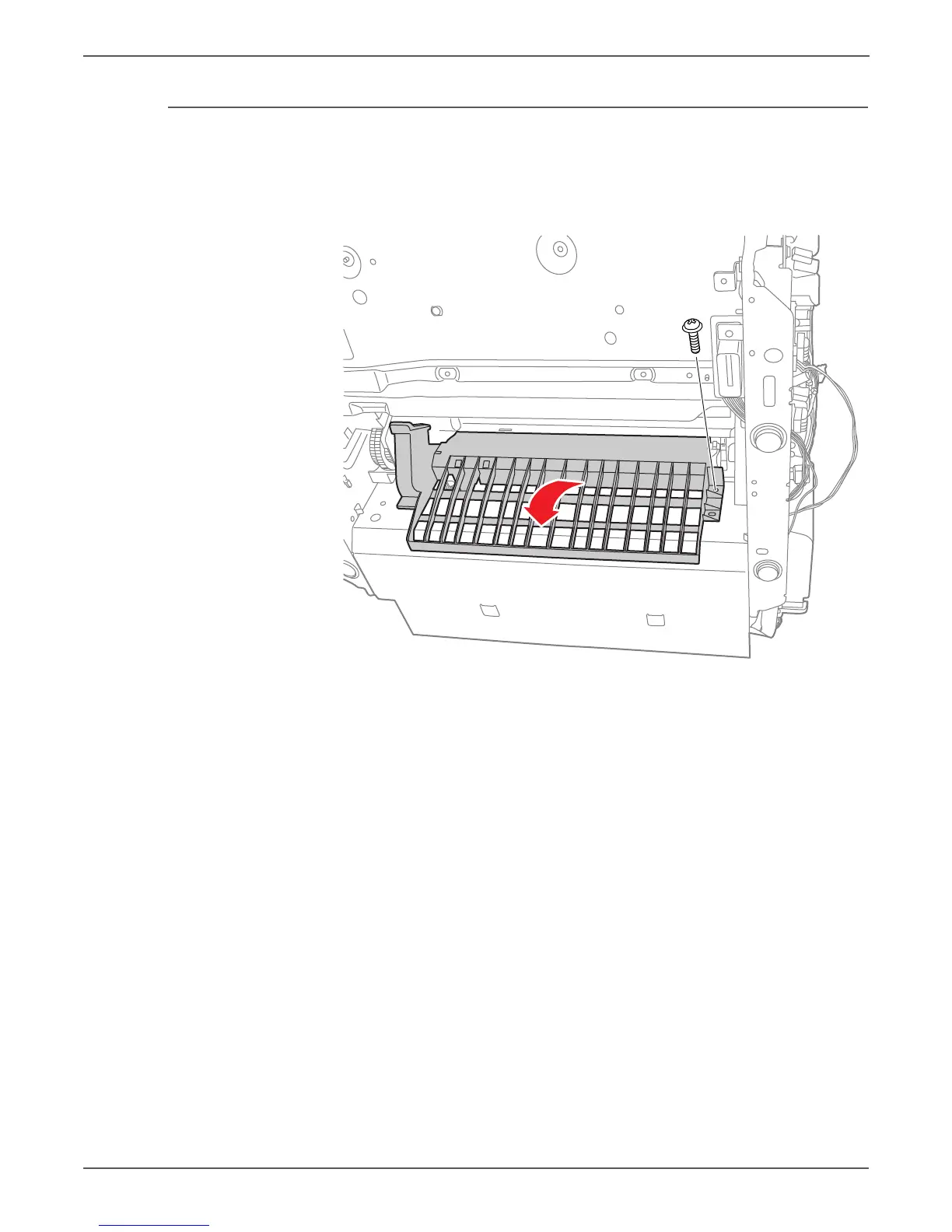

2. Remove the screw (metal, 6mm) and unhook the guide.
s6121mfp-341
