Xerox PHASER 6121MFP - Fax Board

8-62 Phaser 6121MFP Service Manual
Service Parts Disassembly
Fax Board
13.0.30
1. Remove the Rear Cover (page 8-28).
2. Remove the Right Side Cover (page 8-29).

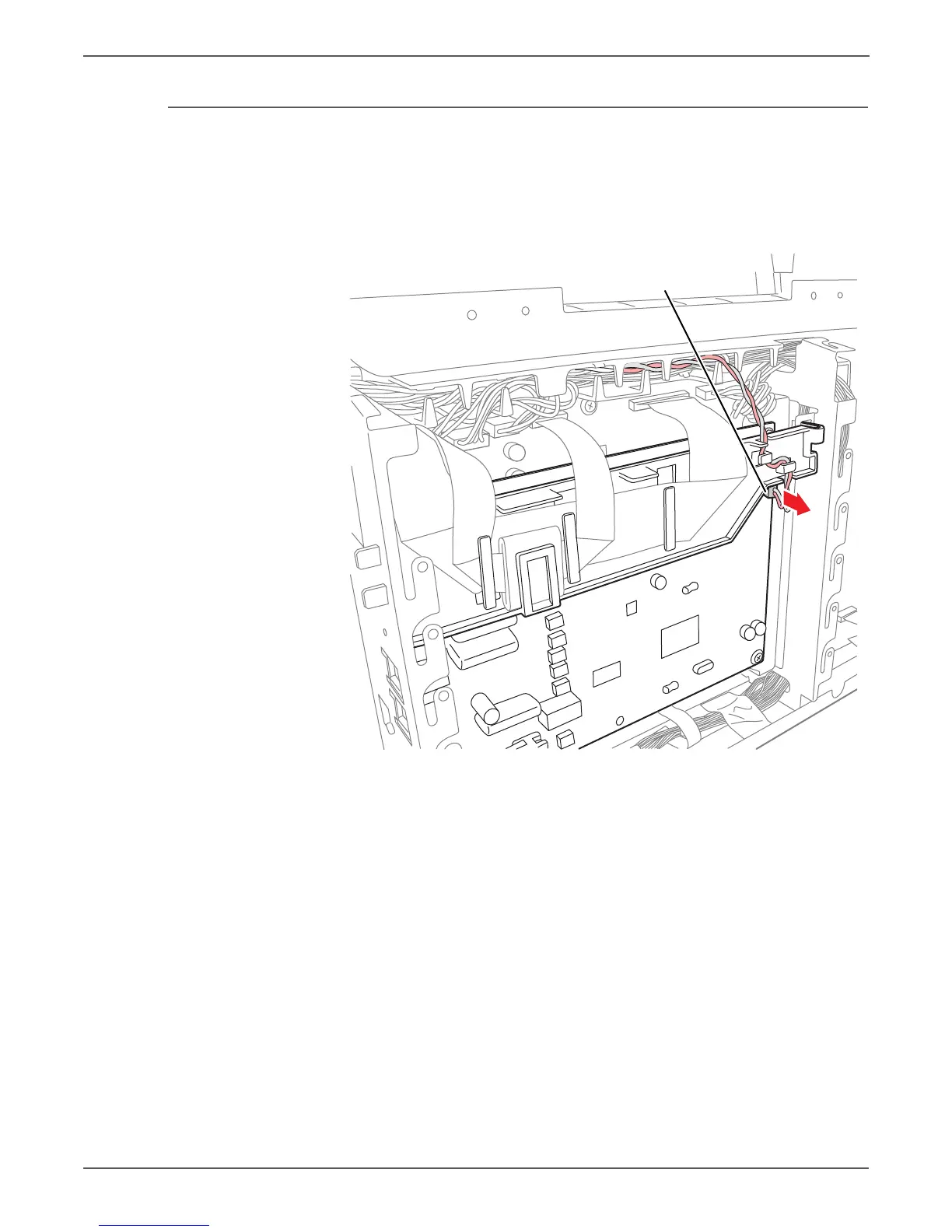

3. Disconnect connector P/J1 on the Fax Board.
P/J1
s6121mfp-240
