8-44 Phaser 6121MFP Service Manual
Service Parts Disassembly

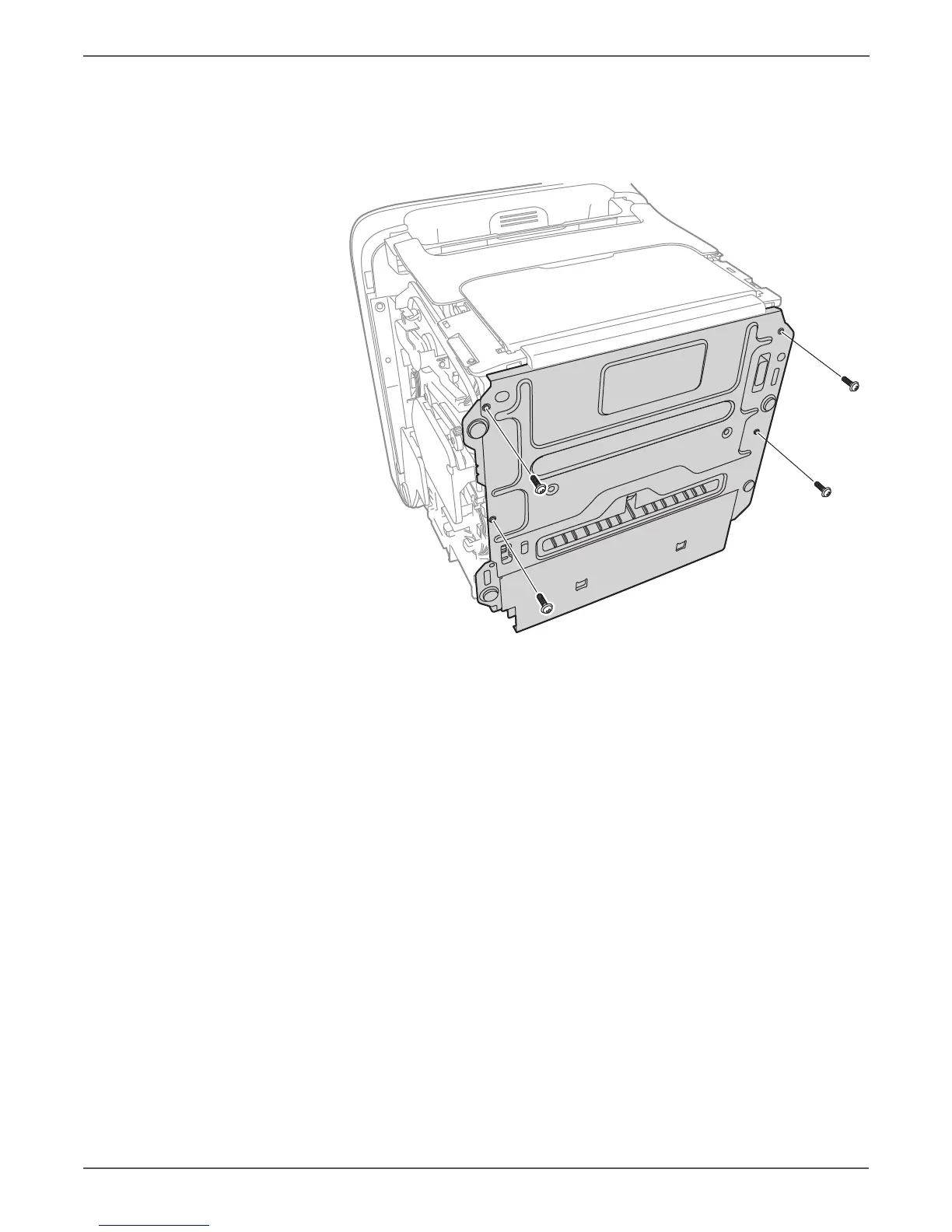

6. Remove 4 screws (metal, 6mm) and remove the bottom plate.
Note
Be careful to not lose the Lifting Plate springs.
s6121mfp-219
