Phaser 6121MFP Service Manual 2-51
Theory of Operation

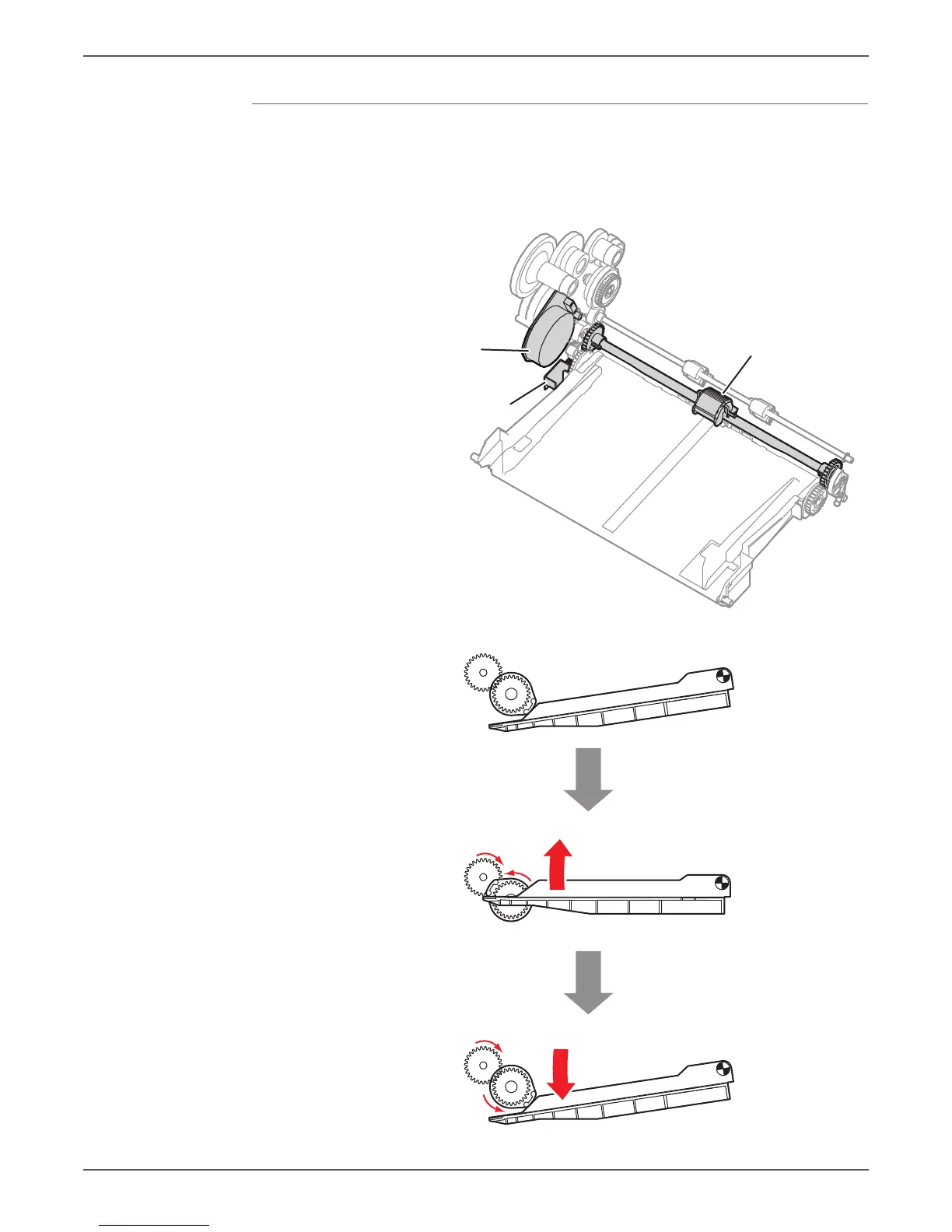

Tray 1 Drive
When the Tray1 Pick Solenoid is energized, drive from the Main Motor is
transmitted to the Pick Roller via the Tray 1 Pick Clutch. At the same time, the Lift
Cam is rotated, which raises the Lift Plate. The media is taken up and fed in by the
Pick Roller.
s6121mfp-154
Pick Roller
Main Motor (M1)
Tray 1 Pick Solenoid (SD1)
To Next Page
