Phaser 8400/8500/8550/8560 Color Printer Service Manual 1-7
General Information

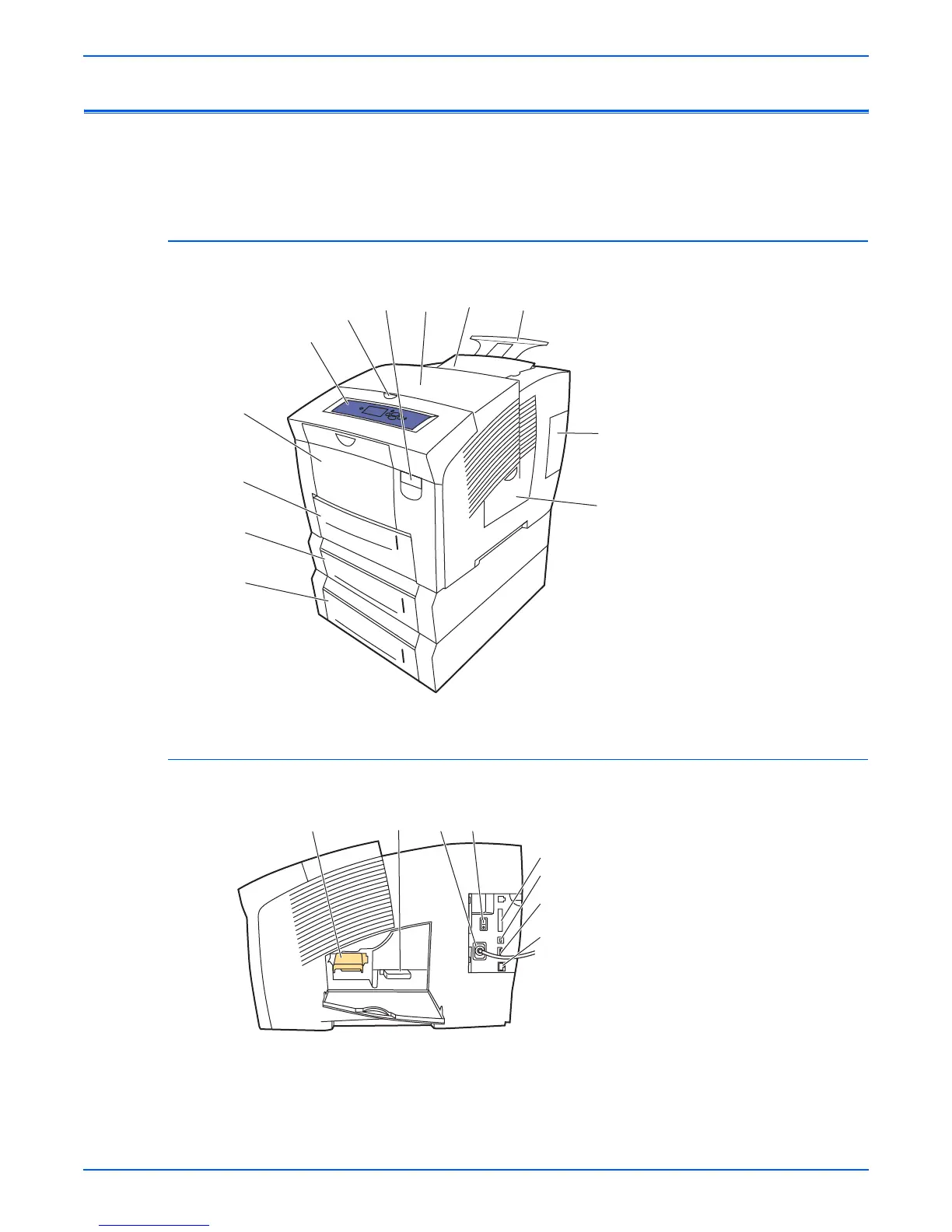

Parts of the Printer
This section shows the main external components of the printer, including
interfaces, the electronics module, and the internal sensors.
Front View
Right Side View with Printer Interfaces
1. Optional 525-Sheet Feeder Tray 4
2. Optional 525-Sheet Feeder Tray 3
3. Tray 2
4.100-Sheet Tray 1 (MPT)
5. Control Panel
6. Exit Cover release
7. Front Door release
8. Exit Cover
9. Ink Loader/top cover
10.Legal/A4 output tray extension
11.Interface cover
12.Side Door
1. Maintenance kit
2. Waste Tray
3. Power Cord connection
4. Power switch
5. Parallel connection (8400 series only)
6. USB connection
7. Configuration Card
8. Ethernet 10/100 Base-T connection
s8500-004
1
2
3
4
7
9
10
8
6
5
12
11
s8500-005
1
2
3
4
6
5
7
8
