8-4 Phaser 8400/8500/8550/8560 Color Printer Service Manual
Service Parts Disassembly
Covers
Front Door/Tray 1 Assembly (PL1.0.1)

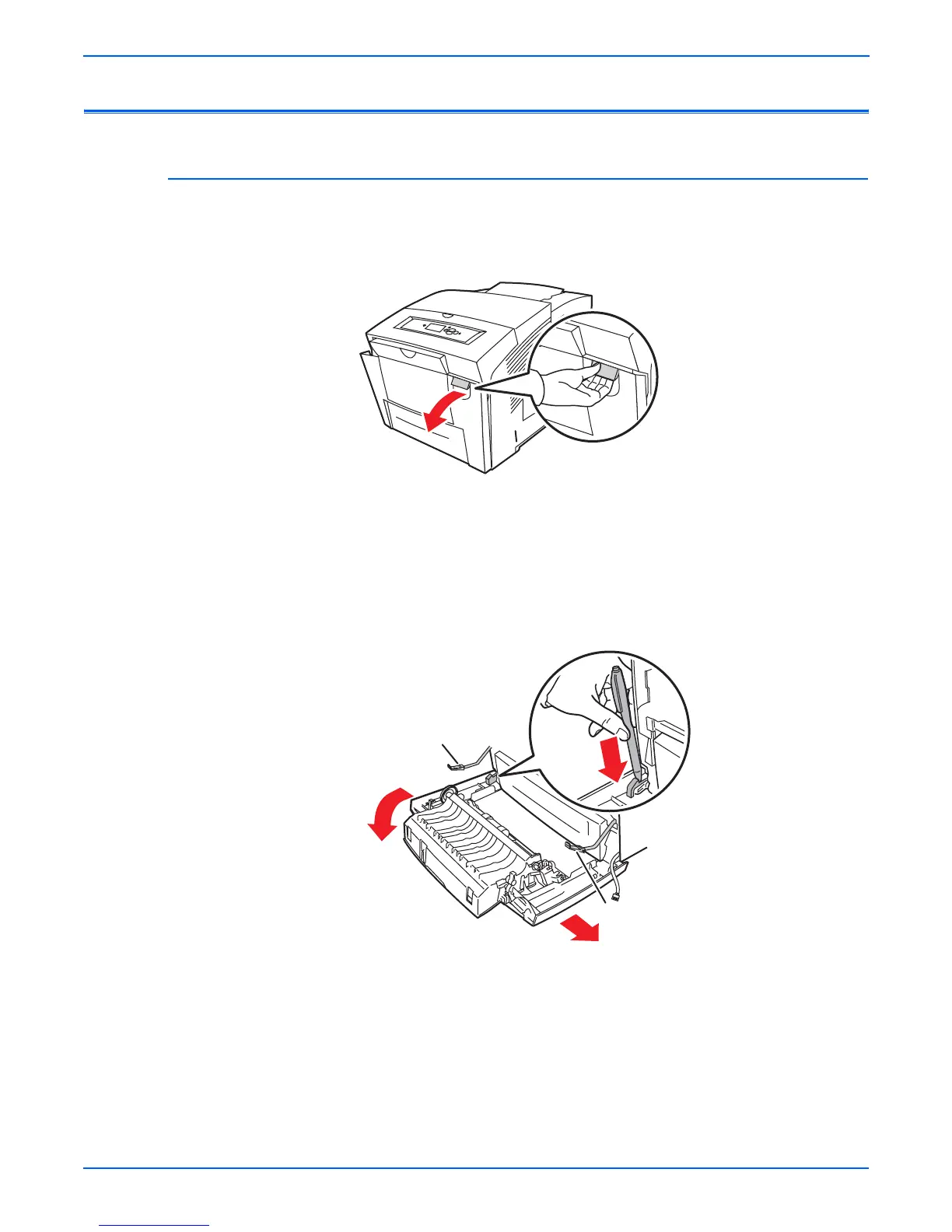

1. Open the Front Door by pulling out on the handle to the right side of the
door.
2. Remove the right and left stay retainers from the Front Door.
3. Open the plug cover and disconnect the plug from the right side of Front
Door.
4. Release the harness from cable retainer on the right side of Front Door.
5. Carefully remove the Front Door, by releasing the left hinge pin from the
frame and sliding the assembly to the right.
Note
Do not lose the hinge pins or stay retainers for the Front Door.
s8500-065
1
3
2
s8500-066
Stay Retainer
Stay Retainer
To Next Page
