Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-19
Service Parts Disassembly
Stripper Carriage (PL2.0.12) and Transfix Roller (PL2.0.13)
Caution
Hold the Transfix Roller and Stripper Carriage with one hand during
removal of the Transfix Roller shaft to prevent the Transfix Roller from
falling and damaging the printer. Also, do not use the Transfix Roller Shaft
Restraint as a lever to pry the shaft. Doing so can bend the restraint.
1. Remove the Right Side Cover (page 8-5).
2. Disconnect P/J250 from the I/O Board.
3. Remove the Control Panel Cover (page 8-5).
4. Remove 2 screws securing the I/O Board to the chassis, slide the board
towards the rear, and move the board out of the way.

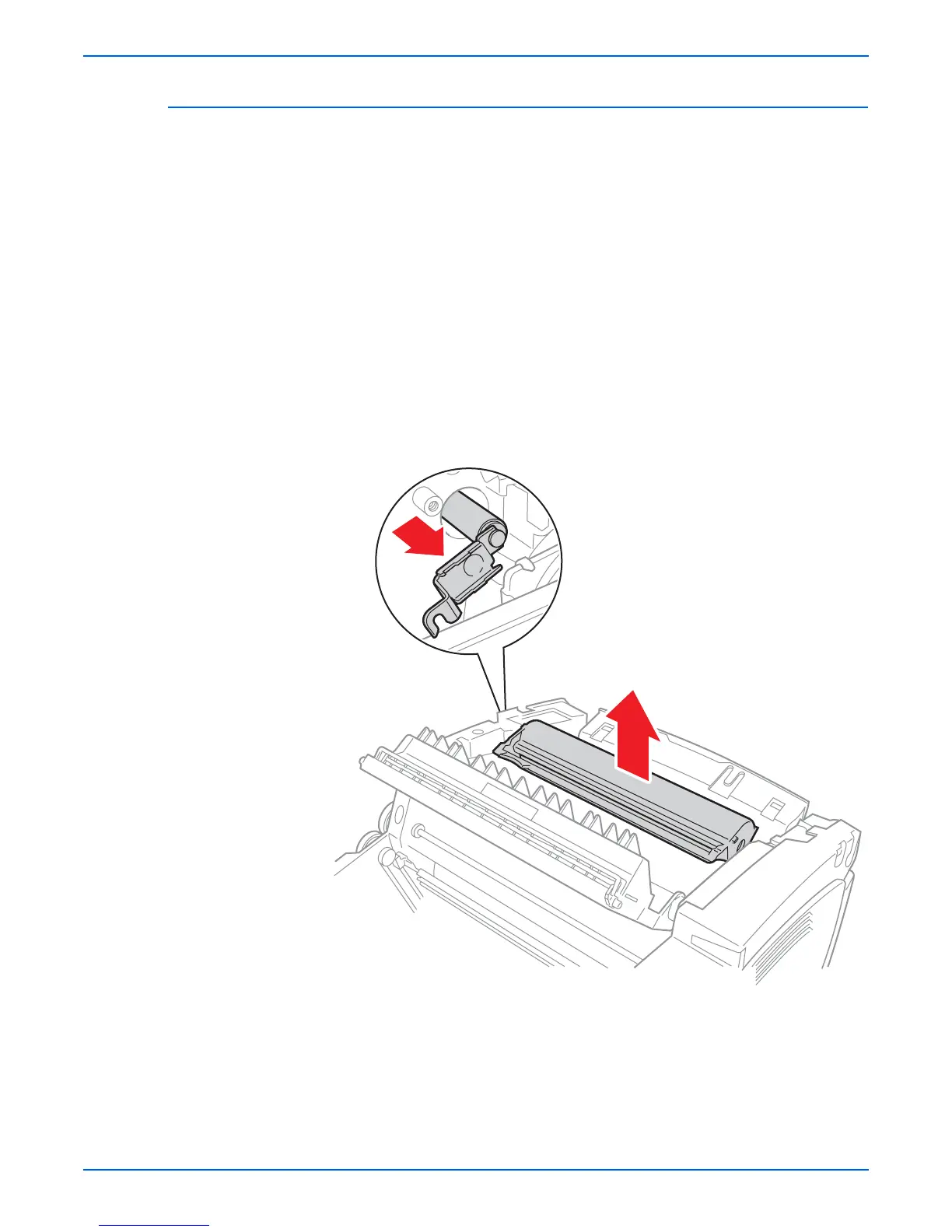

5. Loosen 1 screw securing the Transfix Roller Shaft Restraint and remove
the restraint.
6. Use the end of the Transfix Roller shaft restraint to remove the shaft.
7. Remove the Stripper Carriage and Transfix Roller.
s8500-083
To Next Page
