Xerox Phaser 8500 - Homing the Head Tilt Gear

Phaser 84000/8500/8550/8560 Color Printer Service Manual 6-5
Adjustments and Calibrations
Homing the Head Tilt Gear
The Printhead Is Not in the Printer

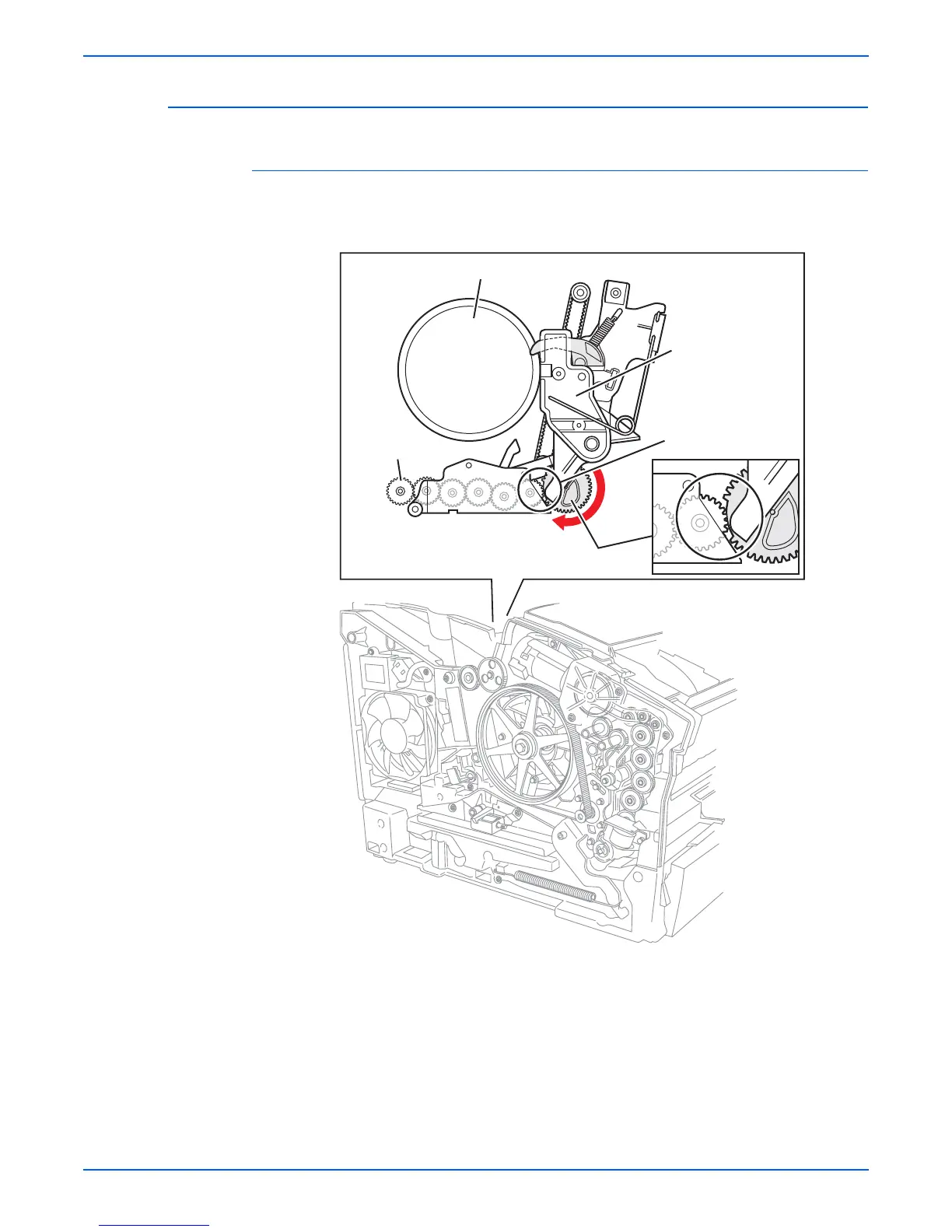

If the Printhead is removed, manually rotate the Head Tilt Gear, located on the
inside of the left frame, to its disengaged position.
s8500-061
Drum
Printhead
Tilt Gear
Tilt gear (disengaged)
DM Cam Gear
