6-2 Phaser 84000/8500/8550/8560 Color Printer Service Manual
Adjustments and Calibrations
Adjustments
Wiper Alignment Procedure
1. Remove the printer covers using the procedures that begin on page 8-4.

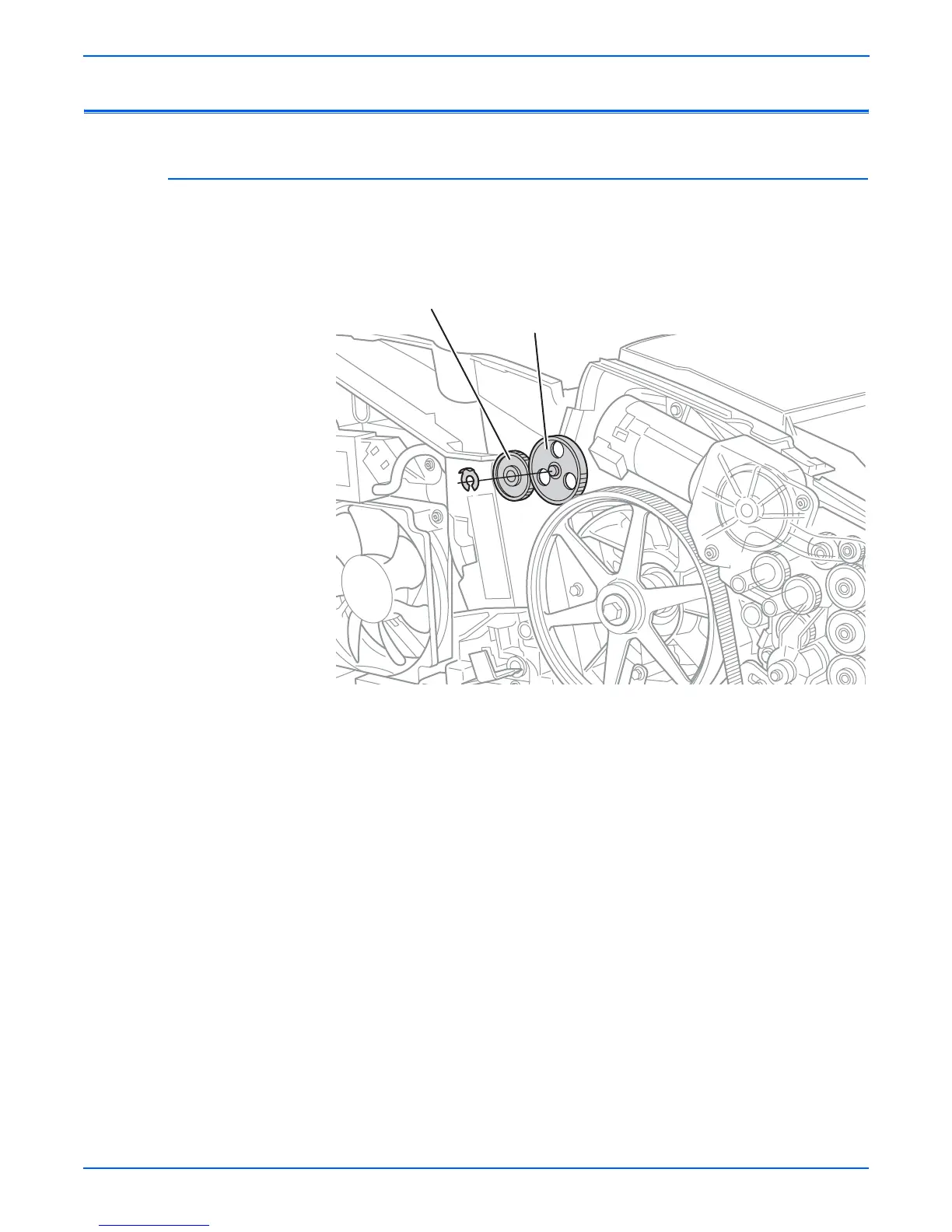

2. Remove the left head maintenance drive gear by removing the e-clip from
the drive shaft.
Left Idler Gear
Left Drive Gear
s8500-059
