8-42 Phaser 8400/8500/8550/8560 Color Printer Service Manual
Service Parts Disassembly

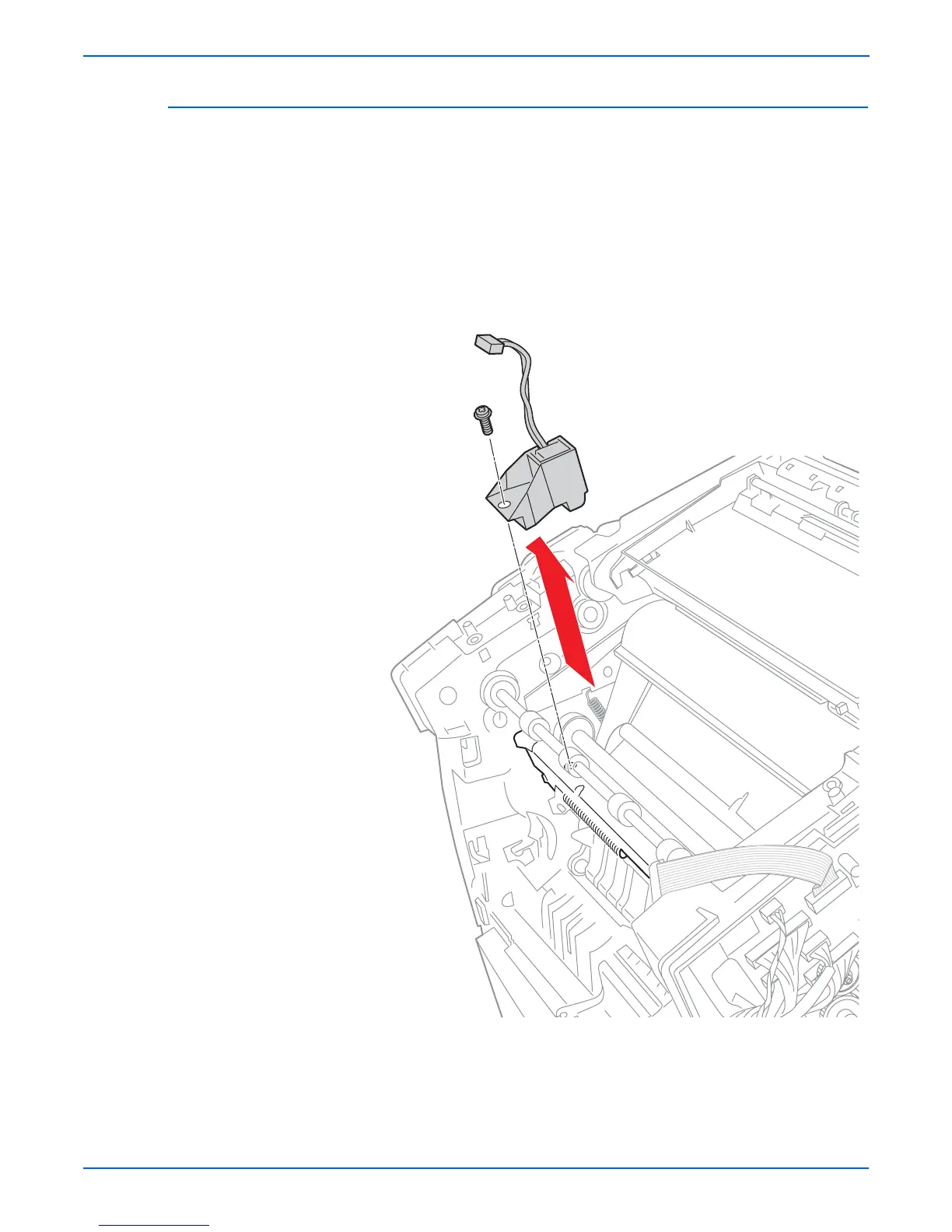

Preheater Lift Solenoid (PL4.0.1)
1. Open the Front Door.
2. Remove the Control Panel and cover (page 8-5).
3. Remove 4 screws, disconnect 2 connectors, and remove the Exit Module
(page 8-32).
4. Remove the Outer and Upper Duplex Guides (page 8-34). The Preheater
Lift Solenoid is now visible on the top of the Transfix Load Module.
5. Disconnect the solenoid harness.
6. Remove 1 screw holding the solenoid to the Transfix Load Module.
R
ep
l
acemen
t
N
o
t
e
Align the hole on Transfix Load Module. Install and torque the screw
to 15 in. lbs. Reconnect the harness.
s8500-134
