Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-5
Service Parts Disassembly
Control Panel Cover (PL1.0.5)
1. Open the Exit Cover.
2. Using either your fingers or a small flathead screwdriver, loosen the
Control Panel Cover on the left side, and then slide it forward while lifting
up to remove it from the printer.
Control Panel (PL1.0.6)
1. Remove the Control Panel Cover (page 8-5).
2. Disconnect the two wiring harness connectors and one ribbon cable
connector from the back of the Control Panel.
3. Remove the Control Panel.
Right Side Cover (PL1.0.10)
1. Open the Exit Cover.
2. Remove the Control Panel Cover (page 8-5).
3. Open the Front Door.
4. Remove the rear screw.
5. Pull forward on the latching tab located by the power plug to release it.
6. Release the front latching tab and pull out on the top to remove the Right
Side Cover.

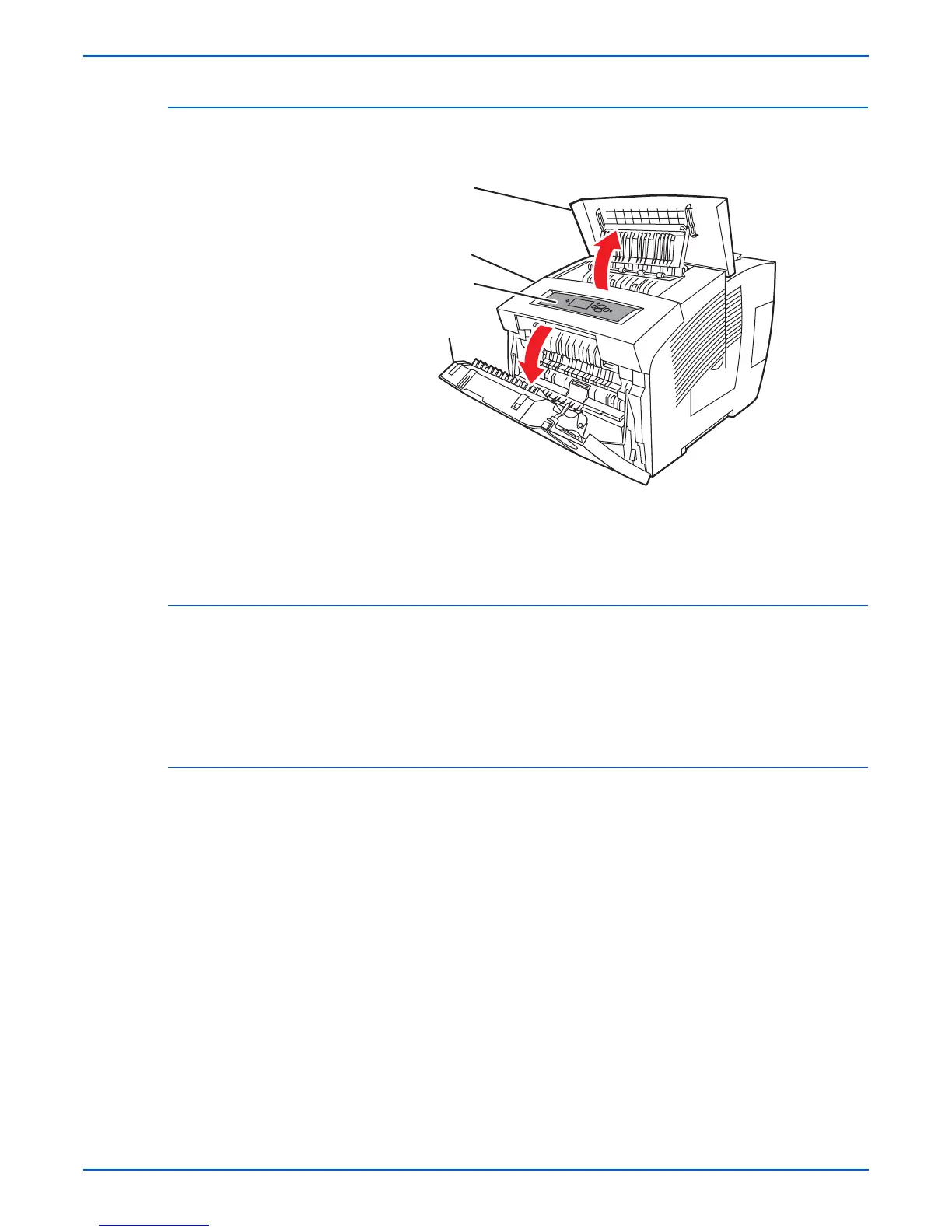

s8500-067
Exit Cover
Control Panel
Front Door
Control Panel Cover
