Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-17
Service Parts Disassembly
Wiper Assembly (PL2.0.17)
Caution
Place several sheets of paper between the Printhead and the Drum to
protect the Drum from damage.
1. Remove the Printhead (page 8-10).
2. Using the gears, position the Wiper Blade all the way up.

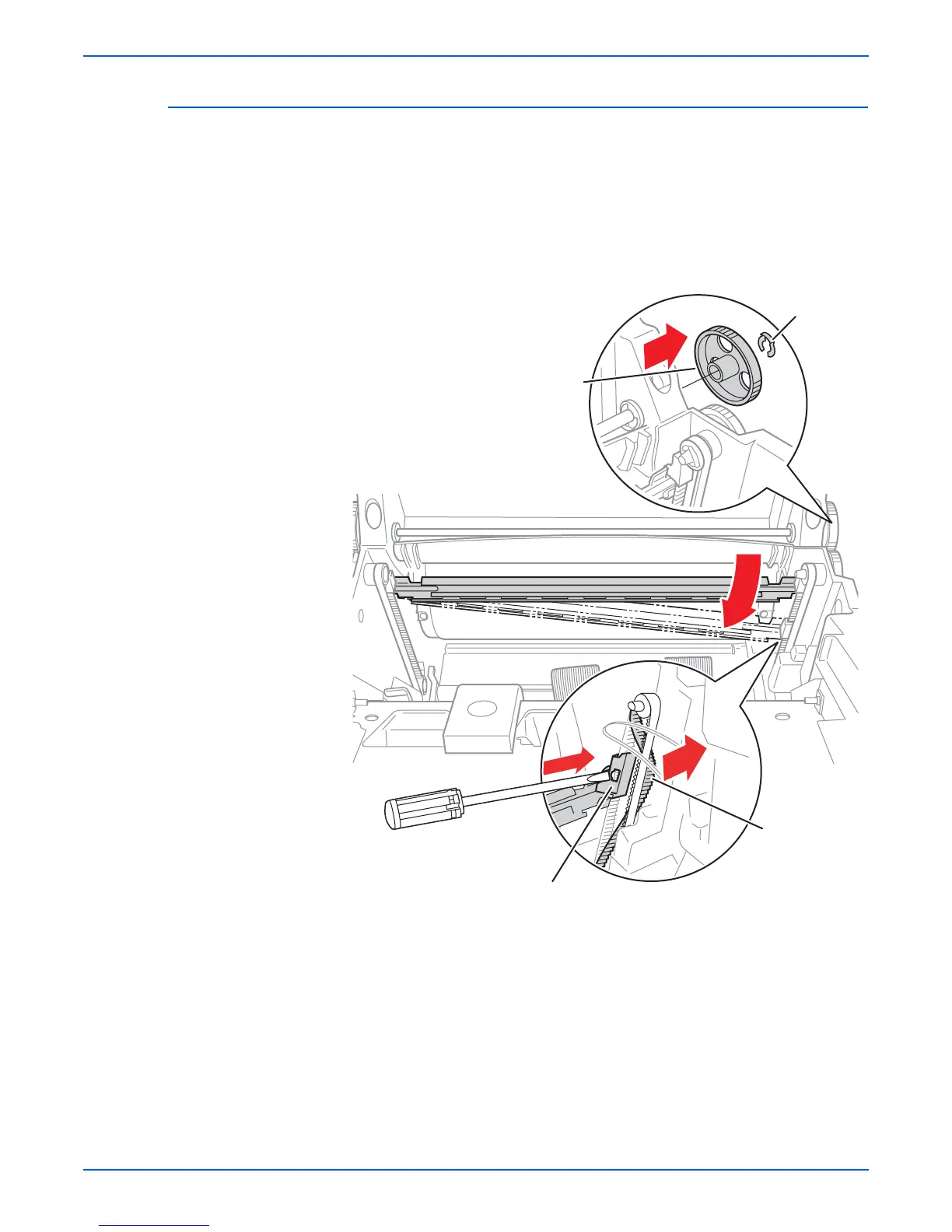

3. On the left side, remove the KL clip and gear as shown below.
4. Remove the left plastic clip from the Wiper Belt and slide the Wiper off of
the belt.
o
e
For early model 8500/8550 printers, insert a small flatblade screwdriver
between the backside of the left wiper clip and the flat side of the belt.
Apply a small amount of pressure against the plastic wiper clip with the
screwdriver, and gently slide the Wiper off the belts.
s8500-081
KL-Clip
Large Drive Gear
Wiper Clip
Wiper Belt
To Next Page
