Xerox Phaser 8500 - Purge Pump (PL2.0.7)

Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-31
Service Parts Disassembly

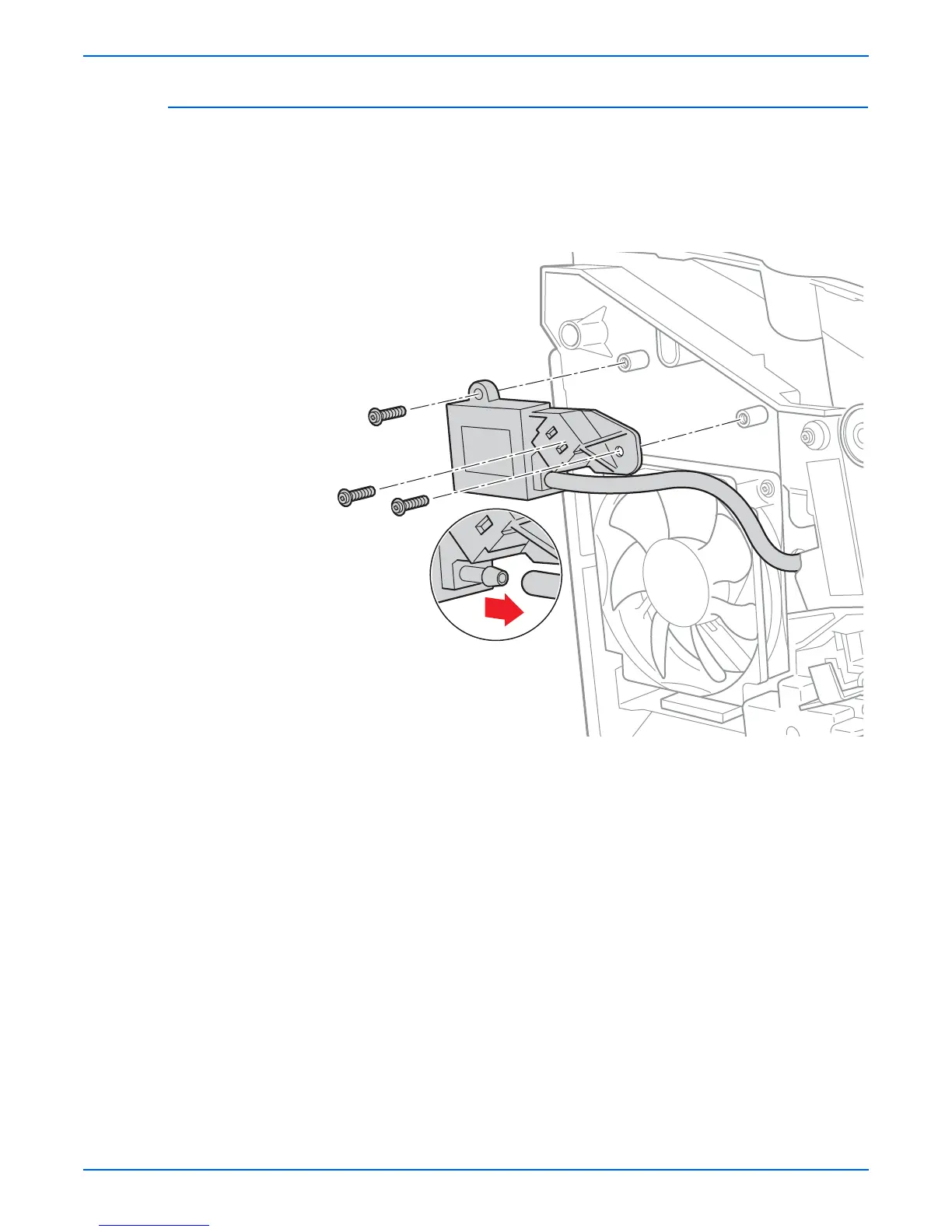

Purge Pump (PL2.0.7)
1. Remove the Left Side Cover (page 8-6).
2. Disconnect the air hose from the Purge Pump.
3. Disconnect the harness from the Purge Pump.
4. Remove 3 screws to remove the Purge Pump.
R
ep
l
acemen
t
N
o
t
e
Screws in plastic are torqued to 12 in. lbs., metal to 15 in lbs., unless
otherwise specified. Irreversible damage can result from over
tightening screws into plastic parts.
s8500-097
