1-8 Phaser 8400/8500/8550/8560 Color Printer Service Manual
General Information

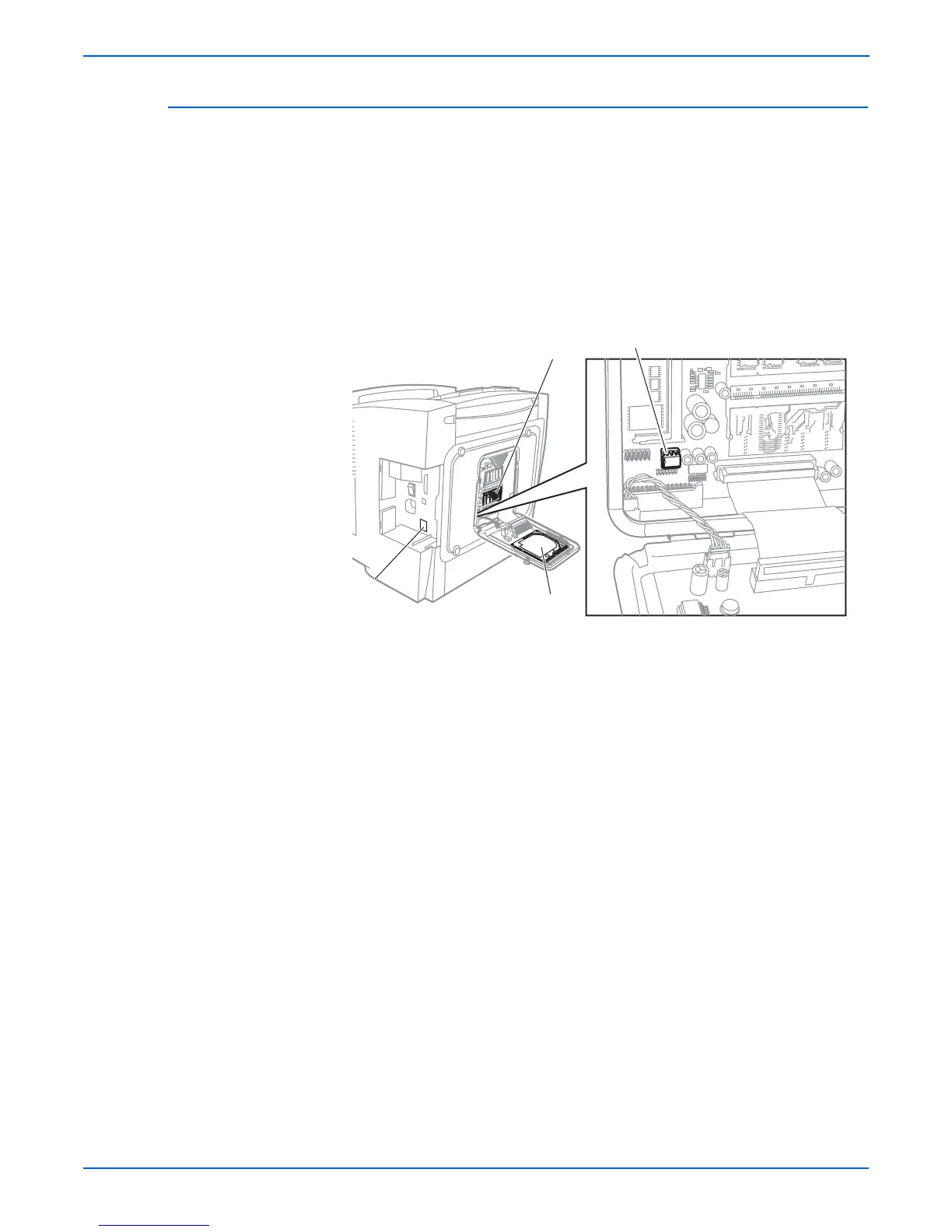

Rear View
The rear view consists of the printer’s main electronics and power supply,
which are enclosed in a metal case called the Electronics Module. The rear
panel allows access to the Electronics Module, RAM, and NVRAM. The
printer’s Hard Drive is also mounted on the rear panel.
When installing a new electronic module in the printer, the following
components need to be transferred from the old board.
1. Hard Drive (optional) 3. Configuration Card (Installed from
the side under the interface cover.)
2. Memory (RAM) DIMM 1 and DIMM 2 4. NVRAM (Configuration Card
handles NVRAM differences
between models).
1
1
2
3
4
s8500-006
