Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-49
Service Parts Disassembly
Drum Heater Relay Board (PL5.0.17)
W
arn
i
ng
This board is supplied with 120 VAC, shut off printer power and
disconnect the power cord before starting this procedure.
1. Remove the Right Side Cover (page 8-5).
2. Disconnect all connections to the board.
3. Remove 2 screws securing the board to the chassis.
4. Remove the Drum Heater Relay Board.
R
ep
l
acemen
t
N
o
t
e
Ensure that no wires are routed behind the Drum Heater Relay Board
during reinstallation. Install and torque the 2 screws to 12 in. lbs.
Reconnect all connections.

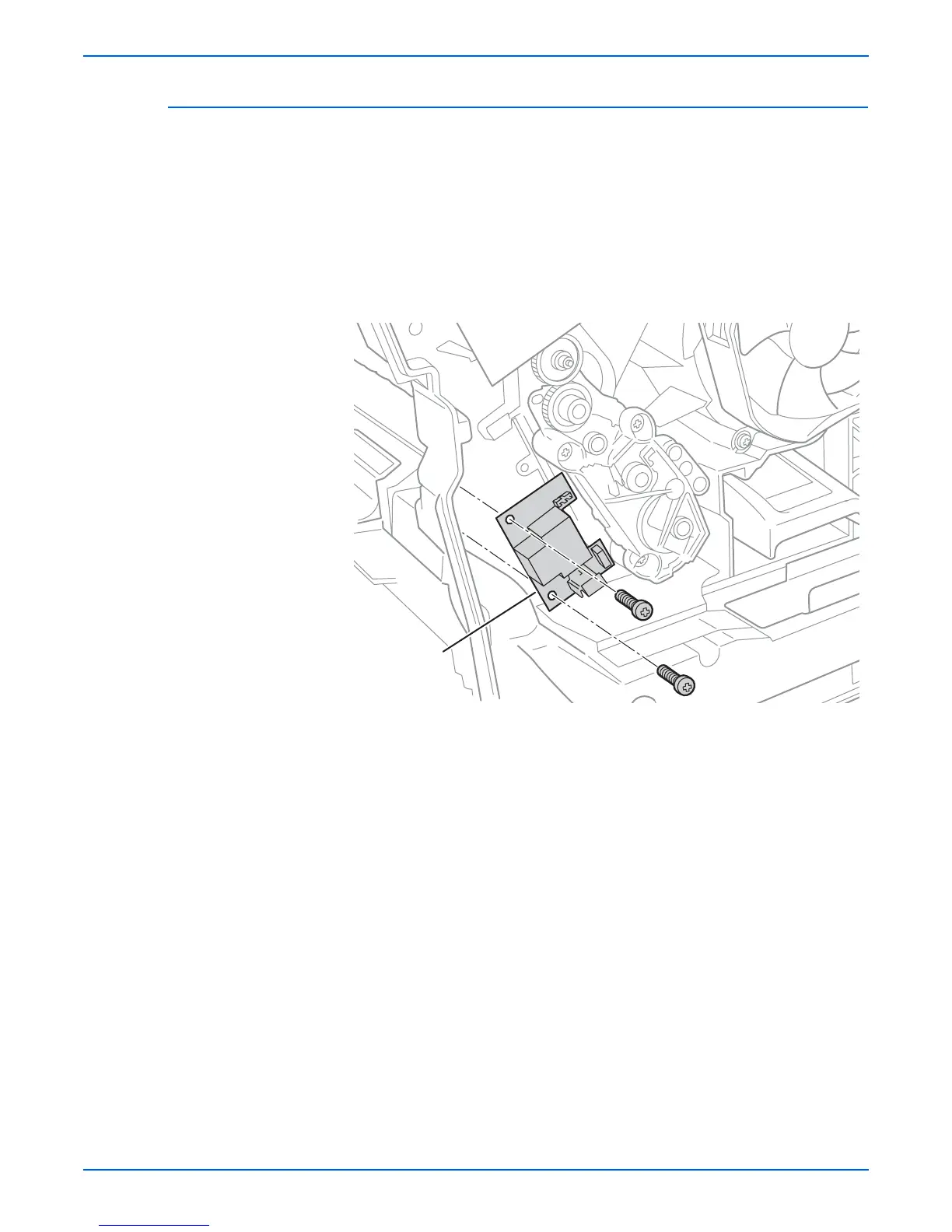

s8500-113
Drum Heater
Relay Board
