Xerox Phaser 8500 Service Manual

Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-21
Service Parts Disassembly
6. Slide the Preheater off the shelves and out of the printer.
R
ep
l
acemen
t
N
o
t
e
The fingers on the Inner Simplex Guide, go over the segmented roller.
First snap the left retainer into place, then the right.

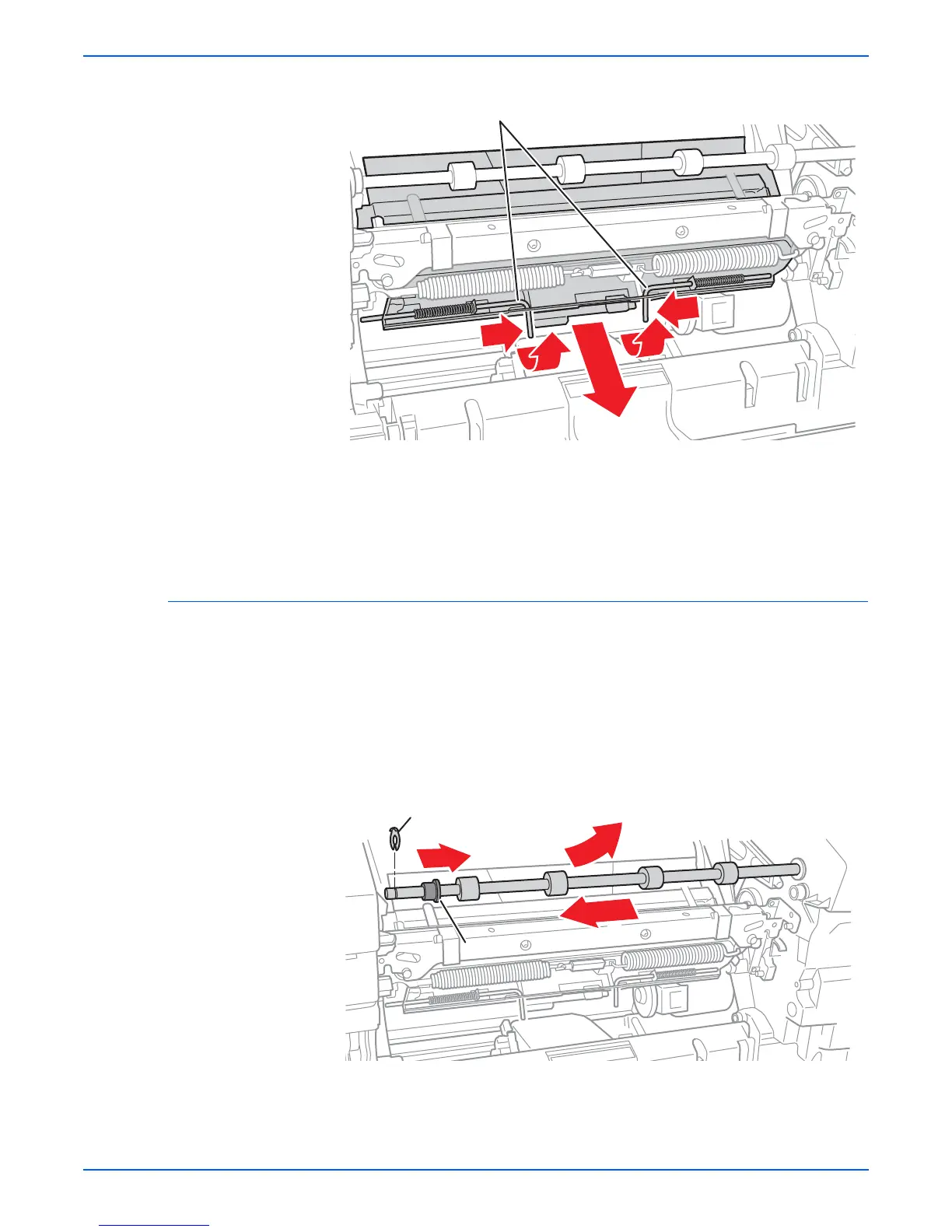

Duplex Roller (PL3.0.8)
1. Open the Front Door.
2. Remove the Outer Duplex Guide (page 8-34).
3. Remove the Upper Duplex Guide (page 8-34).
4. Remove the Lower Inner Duplex Guide (page 8-33).
5. Remove the Duplex Roller by removing the left KL-clip on the shaft and
sliding the left side bearing down the shaft toward the right. Then slide the
shaft toward the left to free the right end of the shaft. Finally, pull the shaft
out towards the right side of the printer.
1
2
2
1
3
s8500-085
Latches
s8500-086
1
3
2
KL-Clip
Bearing
