Xerox Phaser 8500 - Drum Maintenance Pivot Plate (PL2.0.16)

8-26 Phaser 8400/8500/8550/8560 Color Printer Service Manual
Service Parts Disassembly
Drum Maintenance Pivot Plate (PL2.0.16)
1. Remove the Drum Maintenance Kit.
2. Remove the Right Side Cover (page 8-5).
3. Remove the Left Side Cover (page 8-5).
4. Remove the grounding clip on the right end of the Pivot Plate Shaft.
5. Remove the KL-clip on the right end of the Pivot Plate Shaft.
6. Remove the Pivot Plate Shaft.
7. Disconnect the connector from the I/O Board (black/white).
8. Feed the cable into the printer while sliding the Drum Maintenance Pivot
Plate out the Drum Maintenance Kit cavity.
R
ep
l
acemen
t
N
o
t
e
Lightly grease the metal plates on which the cams ride, using a small
quantity of Rheolube 768 grease (P/N 070E00890). Also fill the
pocket under the shaft ground with grease.

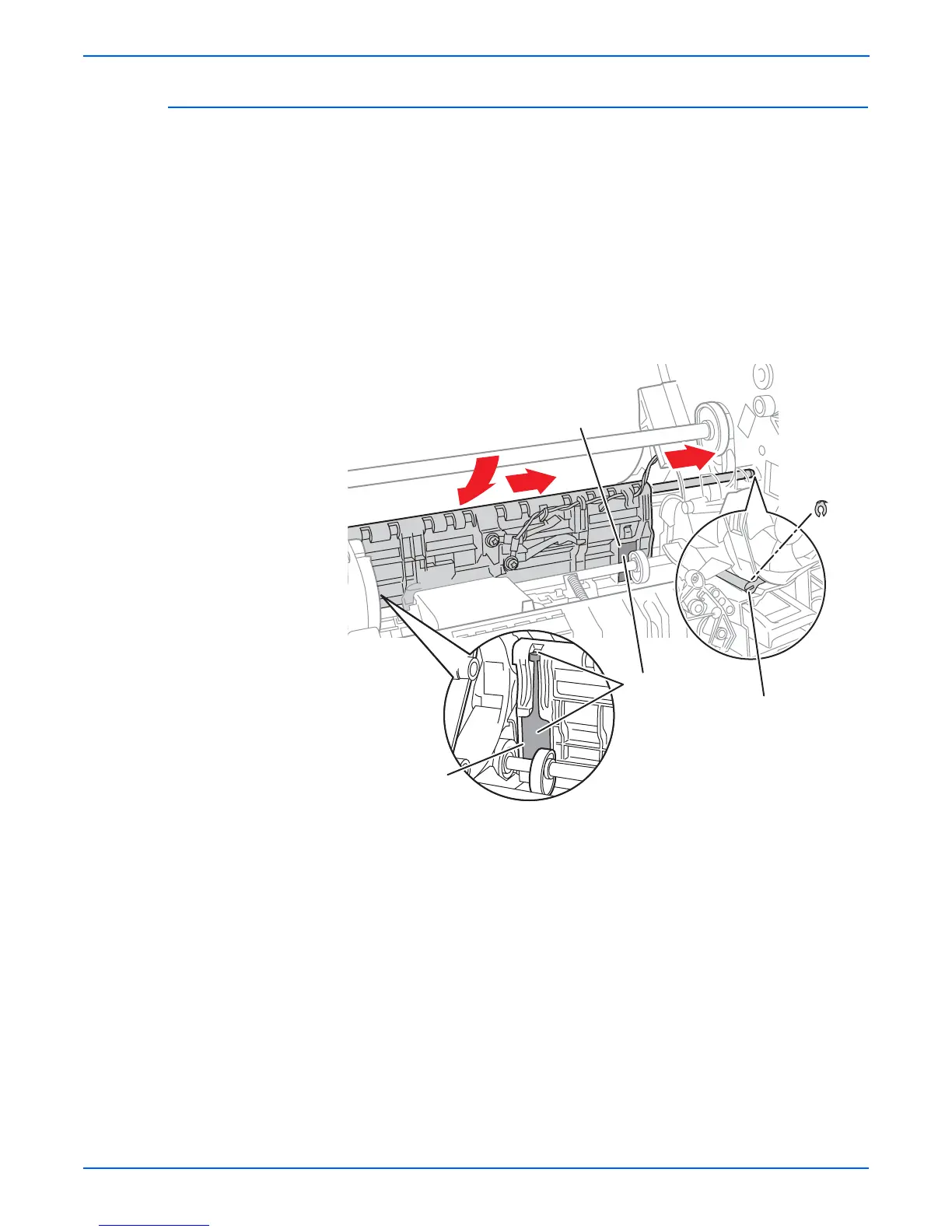

s8500-095
Grease Points
Metal Plate
Metal Plate
1
3
2
Grounding Clip
KL Clip
