8-52 Phaser 8400/8500/8550/8560 Color Printer Service Manual
Service Parts Disassembly
Hard Drive (PL5.0.7)
Caution
Some semiconductor components, such as the NVRAM chip, are
vulnerable to damage by Electrostatic Discharge (ESD).

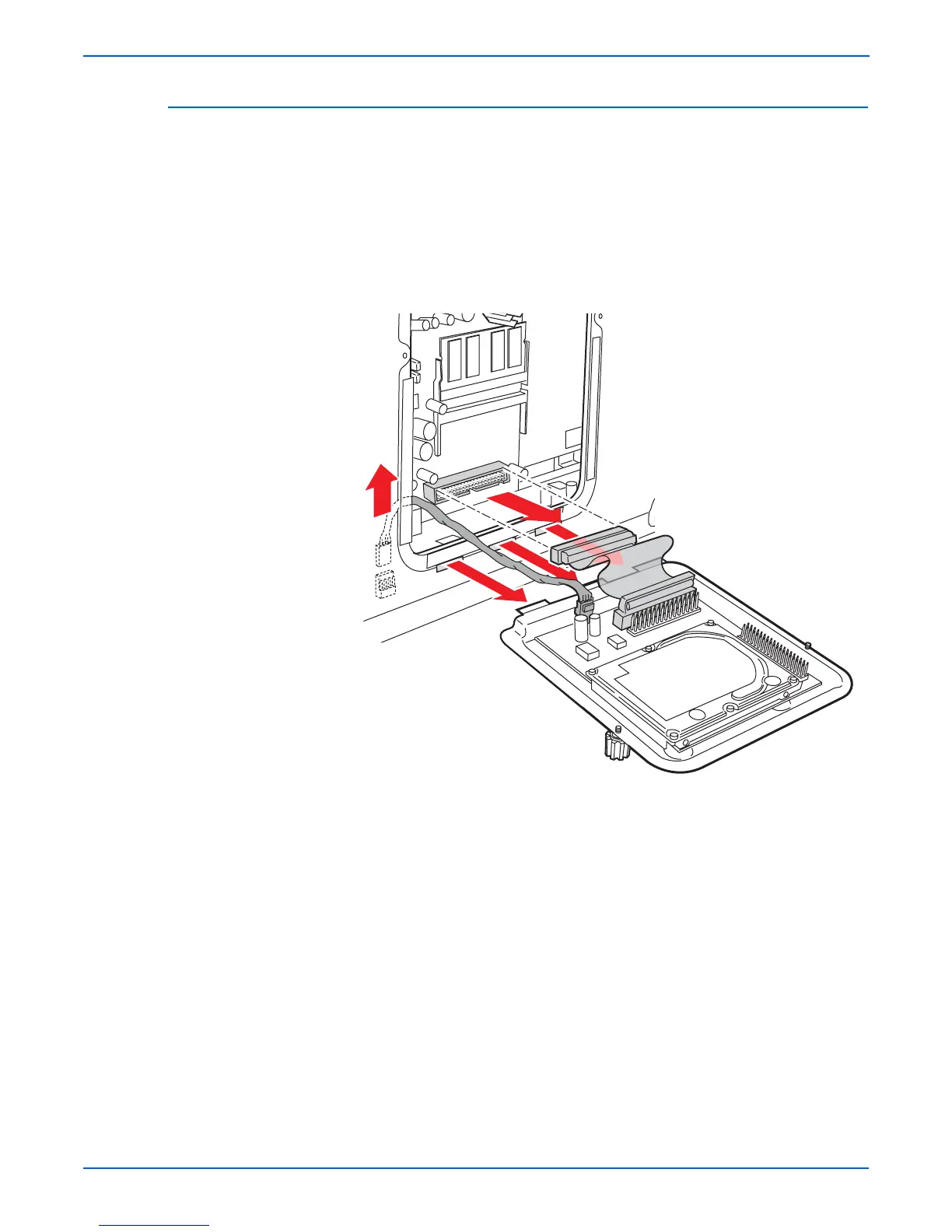

1. Remove the Back Cover from the Electronics Module.
2. Disconnect the 2 connectors from inside the Electronics Module.
3. Pull out and replace the entire unit, including chassis holder, hard drive,
and board.
4. Reattach the 2 connectors to the replacement Hard Drive.
5. Replace the Back Cover.
3
3
3
2
1
s8500-116
