8-16 Phaser 8400/8500/8550/8560 Color Printer Service Manual
Service Parts Disassembly
X-Axis Bias Spring (PL2.0.19)
Caution
The spring is in close proximity to the Drum. Use care not to damage the
Drum with the removal tools or the spring.
1. Remove the Printhead (page 8-10).
2. Using your hands, a spring hook, or pliers, remove the X-Axis Bias Spring
from inside the printer cavity.
R
ep
l
acemen
t
N
o
t
e
Do not rotate the spring more than 1/4 turn during installation.
s8500-080

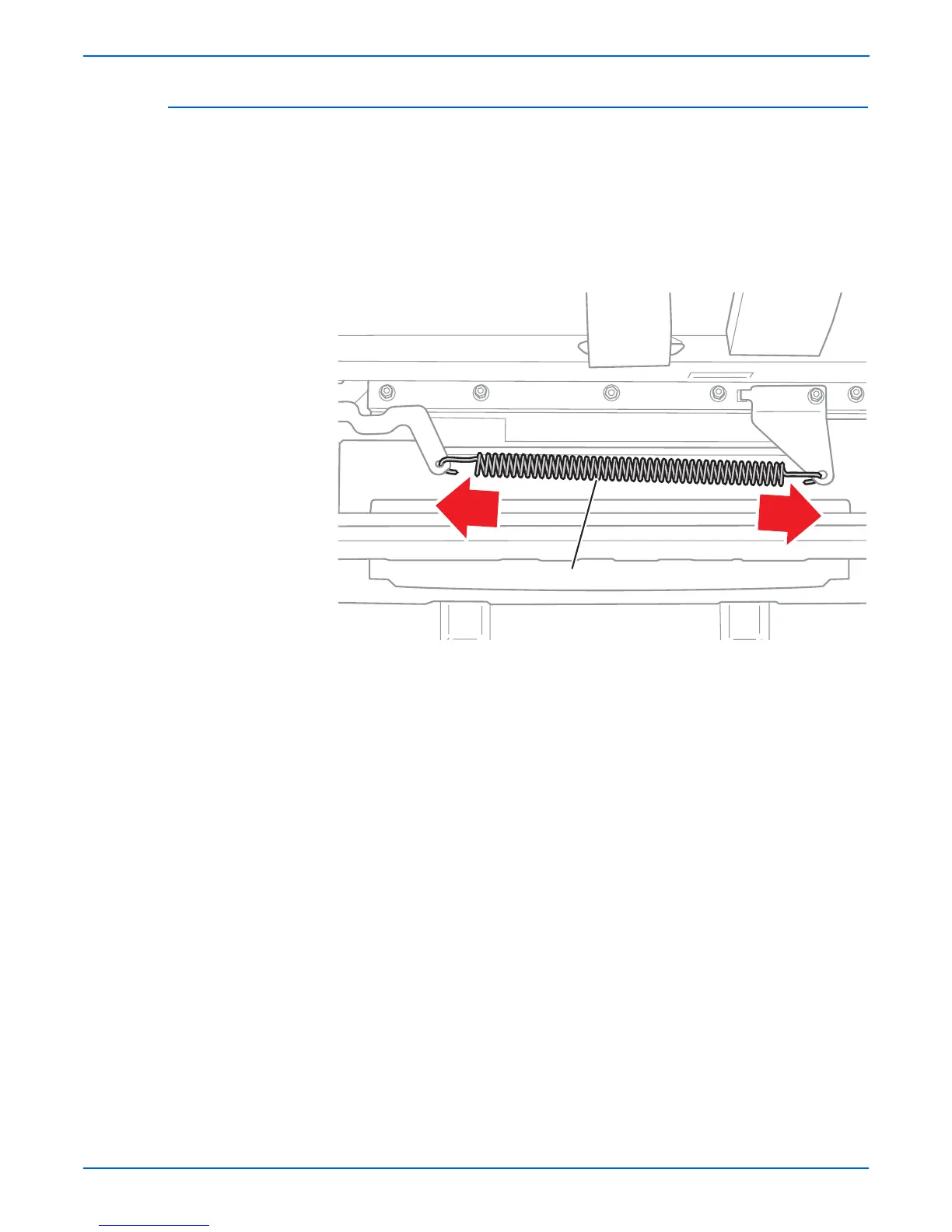

X-Axis Bias Spring
