Phaser 84000/8500/8550/8560 Color Printer Service Manual 6-3
Adjustments and Calibrations
3. Rotate the left and right idler gears until the Wiper is all the way to the
bottom and the gears cannot be rotated further. Rotating the left and right
gears together ensures that the wiper stays parallel and does not pop out
of the belts.
4. Replace the left drive gear and the e-clip.

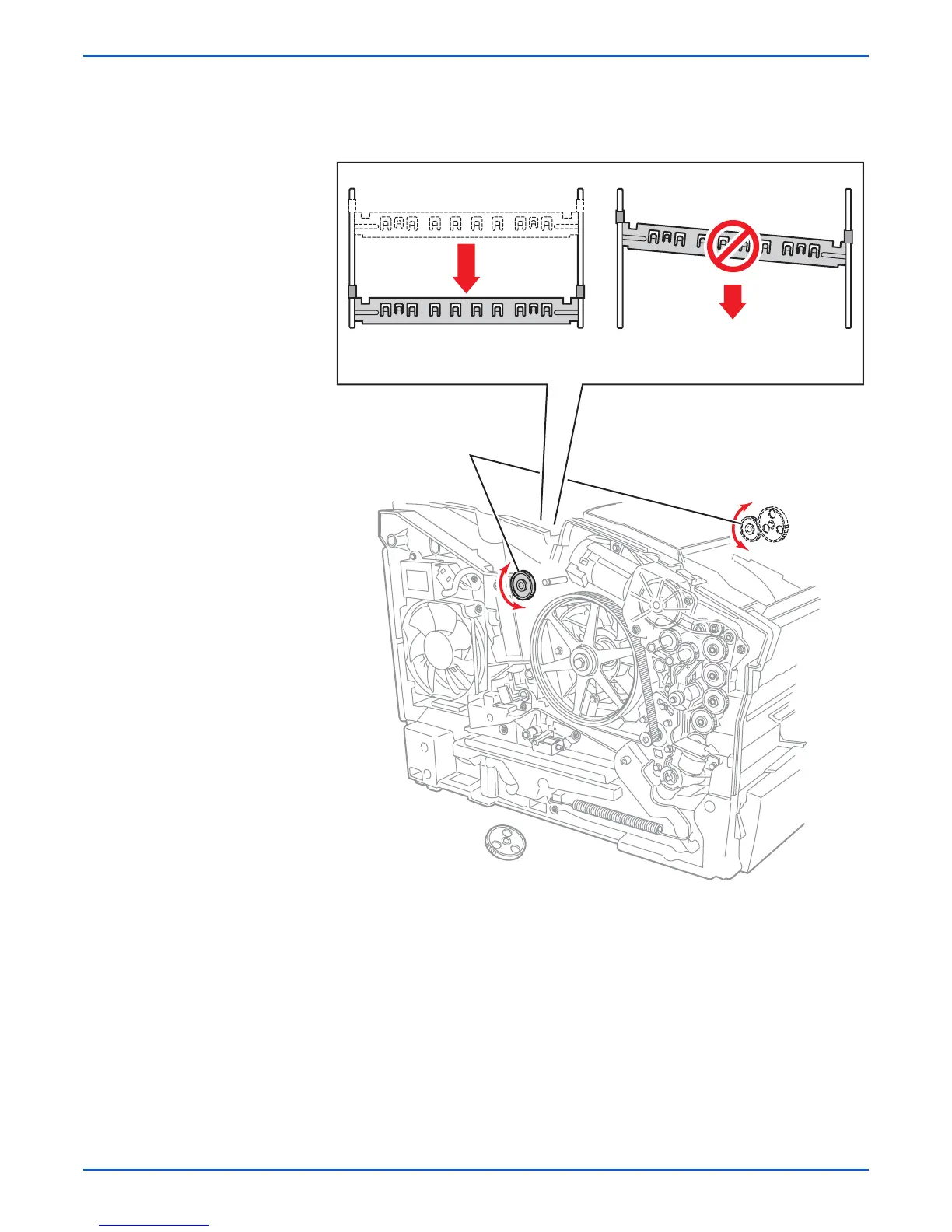

s8500-060
Wiper assembly at bottom
of travel. Wiper not skewed.
Rotate left and right idler
gears to lower wiper.
Wiper skewed when lowering.
To Next Page
