3.4 Fusing Unit Paper Wrinkle Alignment Adjustment
Version 1.0
Image Quality Troubleshooting
Figure 5 j0rk31013
4. Usage flow of the Alignment Adjustment Bracket
NOTE: Use this when pepr wrinkles (*1) has been generated due to interaction.
a. Paper wrinkle due to interaction
• Paper wrinkle due to interaction between the Fusing Unit, Transfer, and Regi
• Cause: The positional relation between the various Sub Rolls is wrong, which
degenerates the transport form of the paper and results in wrinkles being gen-
erated in the Fusing Unit.
b. *2: Sampling
• Paper: A3 SEF
• Pattern: Half Tone K50%
• No. of sheets: Simp 5 sheets

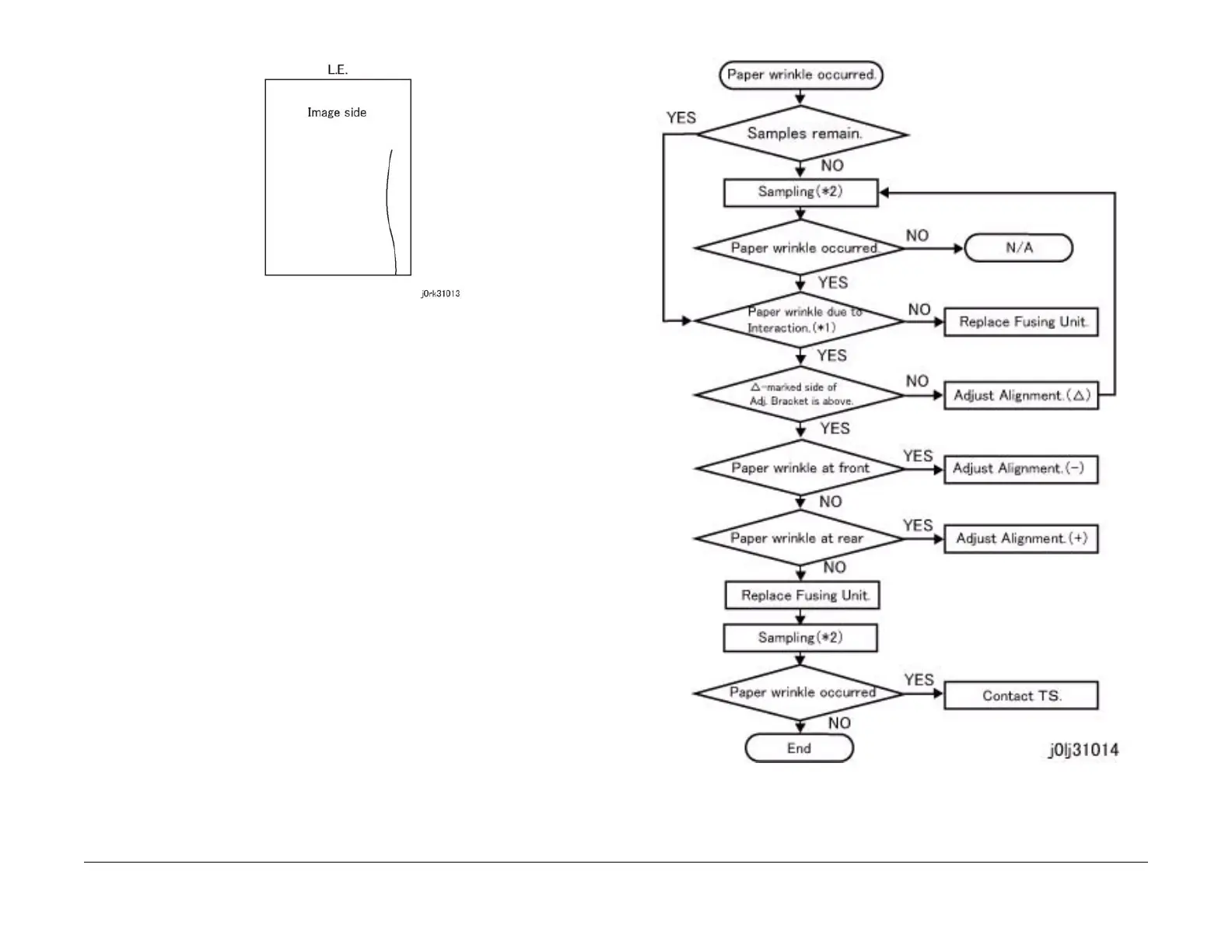

Figure 6 j0lj31014
To Next Page
