Xerox WorkCentre 5024

06/2014
4-107
WC 5022/5024
Repairs and Asdjustments
Version 1.0
ADJ 56.1.1 DADF Lead-Skew Adjustment
Parts List on PL 56.1
Purpose
To correct the feeding of the original by adjusting the position of the DADF. (DADF Lead-Skew,
Perpendicularity)
Check
1. Place the Test Chart (499T283) on the DADF.
2. Make a copy using the following settings in Copy mode.
• Color Mode: "Black"
• Paper Tray: "A3"
• Reduce/Enlarge: "100%"
• No. of Copies: "3"
3. Check that the difference in the distance (A and B) from the side edges of the 3 copies is
within 0 +/-0.5 mm. (Figure 1)

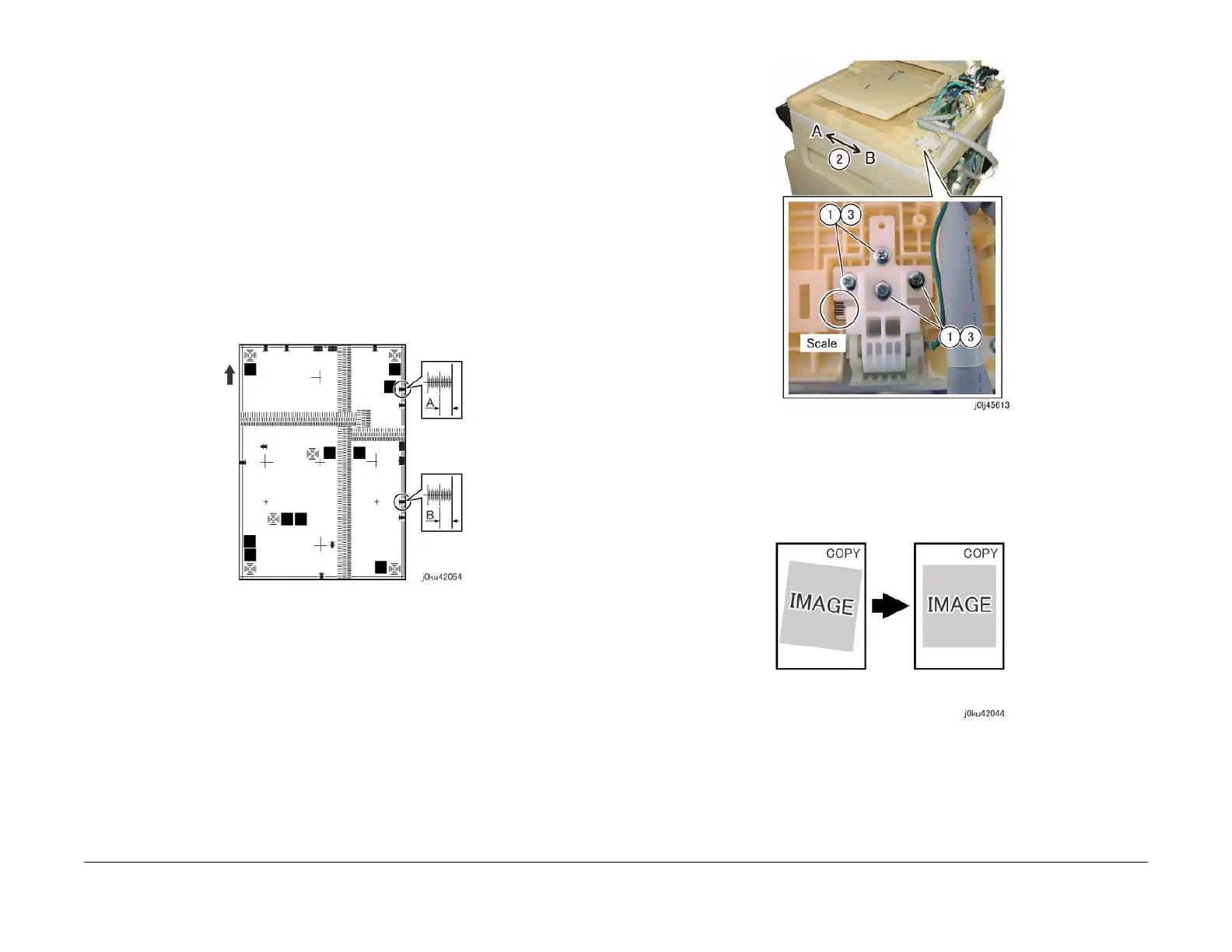

Figure 1 j0ku42054
Adjustment
1. Remove the DADF Rear Cover. (REP 56.2.2)
2. Adjust the position of the DADF by moving the DADF in direction A or B. (Figure 2)
a. Loosen the screw (x3).
b. Move the DADF in direction A or B.
c. Tighten the screw (x3).
Figure 2 j0lj45613
• The DADF moved in direction A. (Figure 3)
Figure 3 j0ku42044
• The DADF moved in direction B. (Figure 4)
