06/2014
4-41
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 11.1.1 Tray 3 Feeder
Parts List on PL 11.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp turns OFF. Press the
<Job Status> button to check that there are no jobs in progress/waiting in the queue.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove Tray 3.

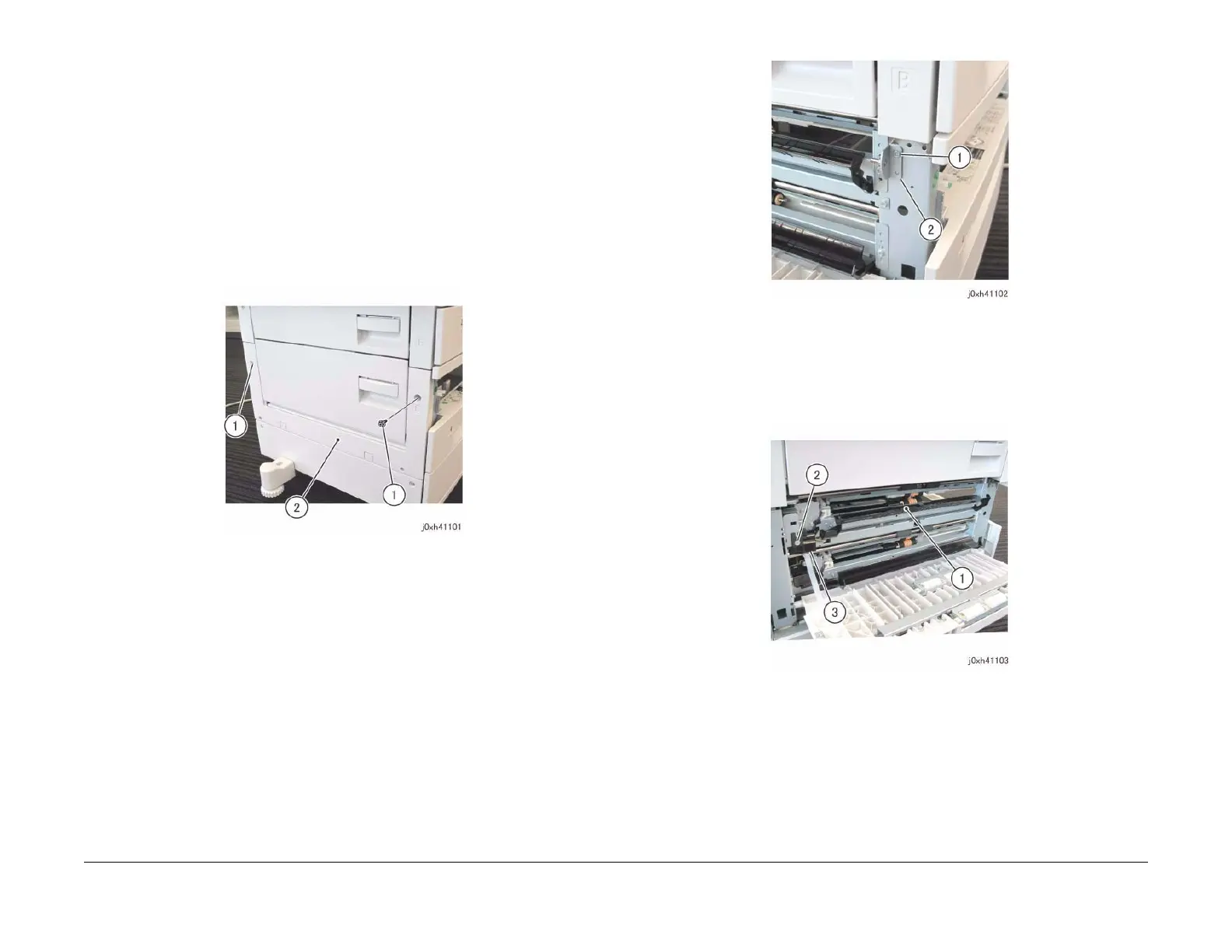

2. Remove the Left Upper Cover. (Figure 1)
a. Remove the screw (x2).
b. Remove the Left Upper Cover.
Figure 1 j0xh41101
3. Remove the Stud Assembly. (Figure 2)
a. Remove the screw.
b. Remove the Stud Assembly.
Figure 2 j0xh41102
4. Remove the Feed Out Chute and the Harness Cover. (Figure 3)
a. Remove the Feed Out Chute.
b. Remove the screw.
c. Remove the Harness Cover.
Figure 3 j0xh41103
5. Disconnect the connector. (Figure 4)
a. Release the wire harness from the clamp.
b. Disconnect the connector.
To Next Page
