06/2014
4-32
WC 5022/5024
Version 1.0
Repairs and Asdjustments

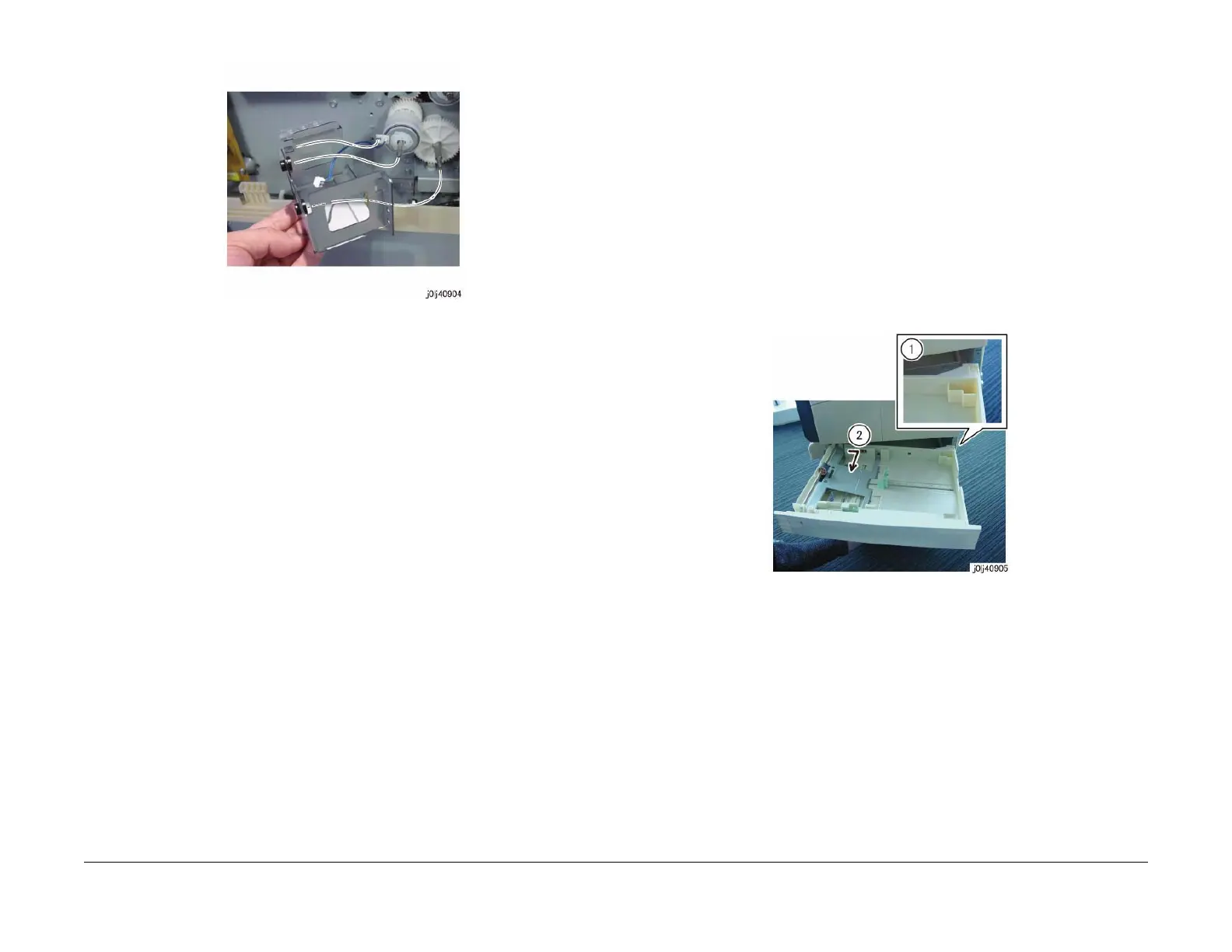

Figure 4 j0lj40904
REP 9.1.2 Tray 1
Parts List on PL 9.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the paper from Tray 1.
2. Pull out Tray 1 until the position where it is stopped by the stopper.
3. Remove Tray 1. (Figure 1)
a. Lift up the front of Tray 1 and free the rear right side of Tray 1.
b. Free the rear left side of Tray 1 in the direction of the arrow.
Figure 1 j0lj40905
Replacement
1. To install, carry out the removal steps in reverse order.
