REP 15.1.1 Registration Chute
Parts List on PL 15.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Front Cover. (REP 19.1.1)
3. Remove the MSI. (REP 13.1.1)
4. Remove the L/H Cover. (REP 14.1.1)
5. Remove the Drum Cartridge Guide. (Figure 1)
a. Remove the screw.
b. Remove the Drum Cartridge Guide.

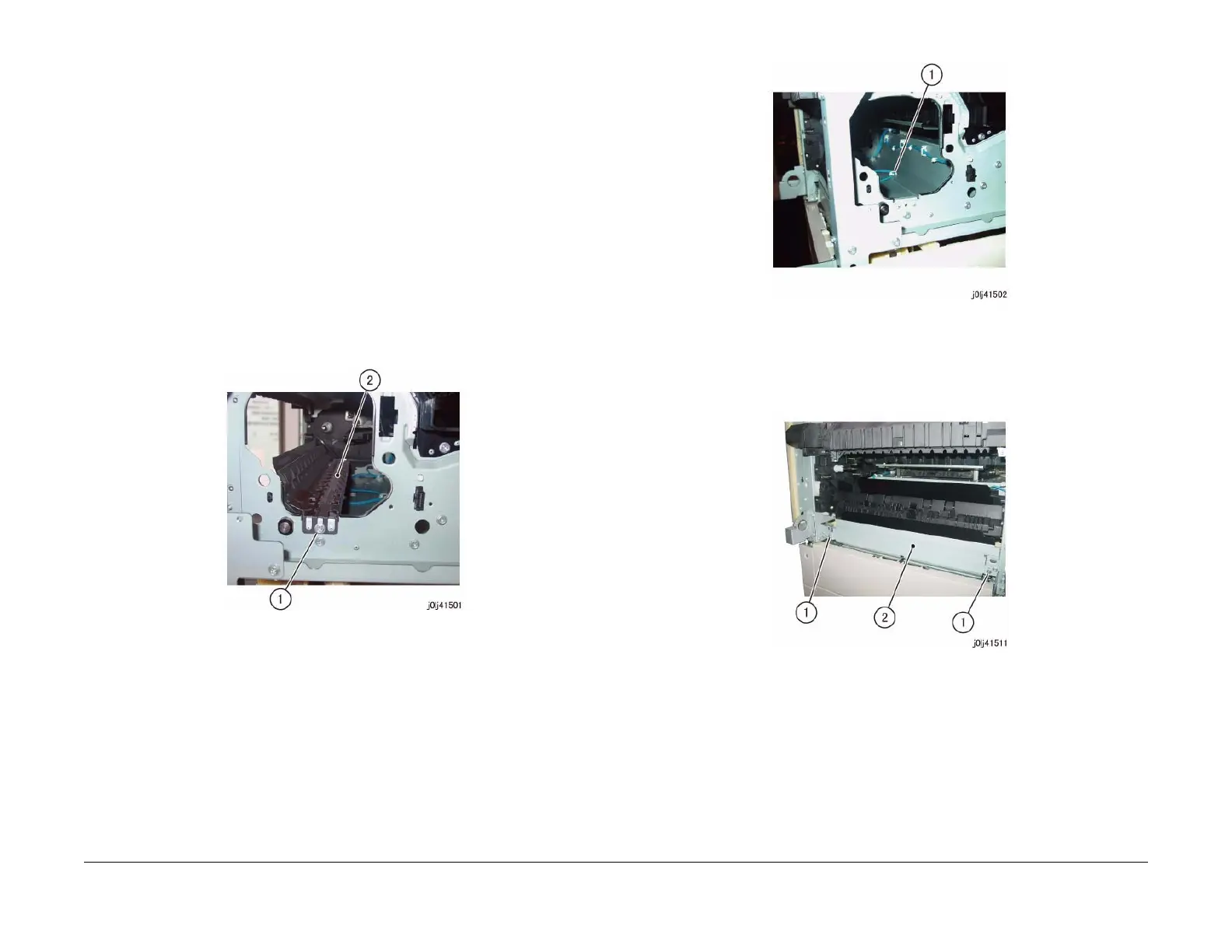

Figure 1 j0lj41501
6. Release the wire harness from the clamp. (Figure 2)
a. Release the wire harness from the clamp.
Figure 2 j0lj41502
7. Remove the L/H Chute. (Figure 3)
a. Remove the screw (x2).
b. Remove the L/H Chute.
Figure 3 j0lj41511
8. Rotate the Registration Chute. (Figure 4)
a. Remove the Tapping Screw.
b. Move the Registration Chute slightly to the rear and rotate it in the direction of the
arrow.
