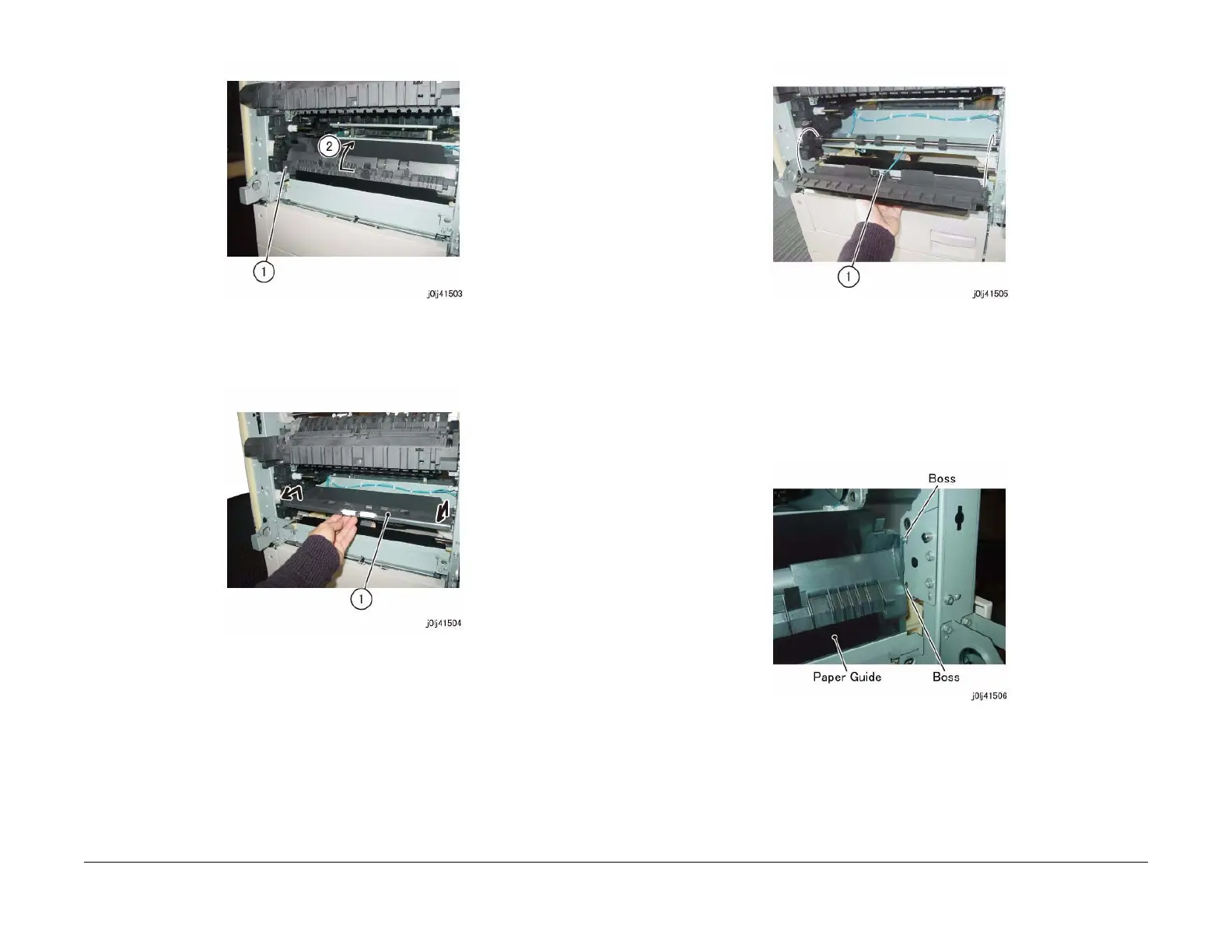

Figure 4 j0lj41503
9. Remove the Registration Chute from the bearing (x2) of the Registration Roll. (Figure 5)
a. Remove the Registration Chute.
Figure 5 j0lj41504
10. Disconnect the connector and remove the Registration Chute. (Figure 6)
a. Disconnect the connector and remove the Registration Chute.
Figure 6 j0lj41505
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Registration Chute, insert the boss (x2) of the Registration Chute into
the holes for the boss. (Figure 7)
3. When installing the Registration Chute, install the Registration Chute to the inner side of
the Paper Guide. (Figure 7)
Figure 7 j0lj41506
4. When installing the Drum Cartridge Guide, insert the boss (x2) of the Drum Cartridge
Guide into the holes for the boss. (Figure 8)
