WC 5022/5024
PL 19.1
Parts List
Version 1.0

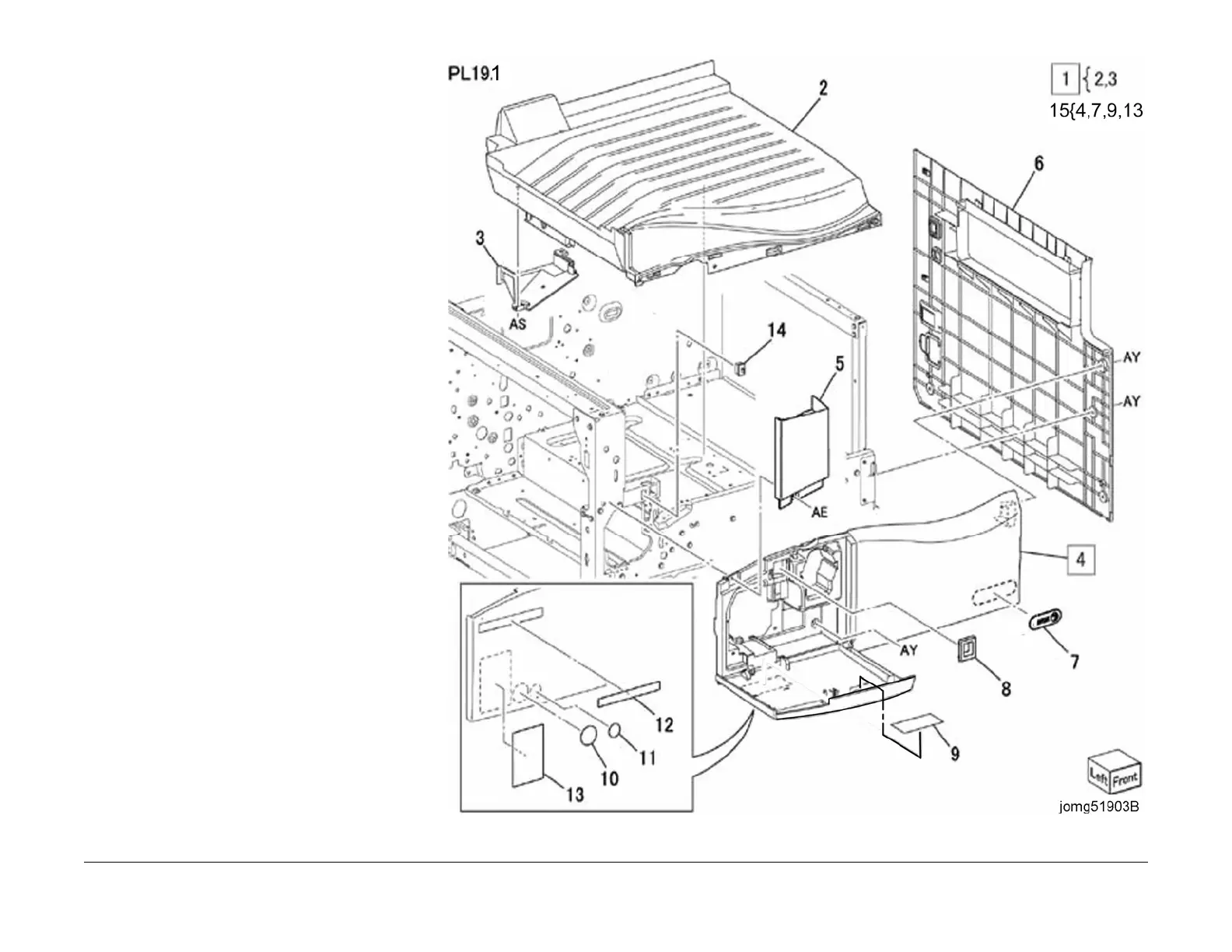

PL 19.1 Cover-Front,Top,Right
Item Part Description
1 848K68291 Top Cover (Item 2,3) (REP 19.1.2)
2 – Top Cover (P/O Item 1)
3 054E50280 Duct
4 – Front Cover (P/O Item 15) (REP
19.1.1)
5 848E84571 Fusing Unit Cover
6 848E84614 Right Cover
7 – Logo Plate (P/O Item 15)
8 – Switch Cover
9 – CRU Instruction (P/O Item 15)
10 – Label
11 – Label
12 604K90820 Name Plate Kit
13 – Energy Label (P/O Item 15)
14 110E94770 Front Cover Switch
15 848K76560 Front Cover Kit (Item 4,7,9,13)
