06/2014
5-22
WC 5022/5024
PL 9.3
Version 1.0
Parts List

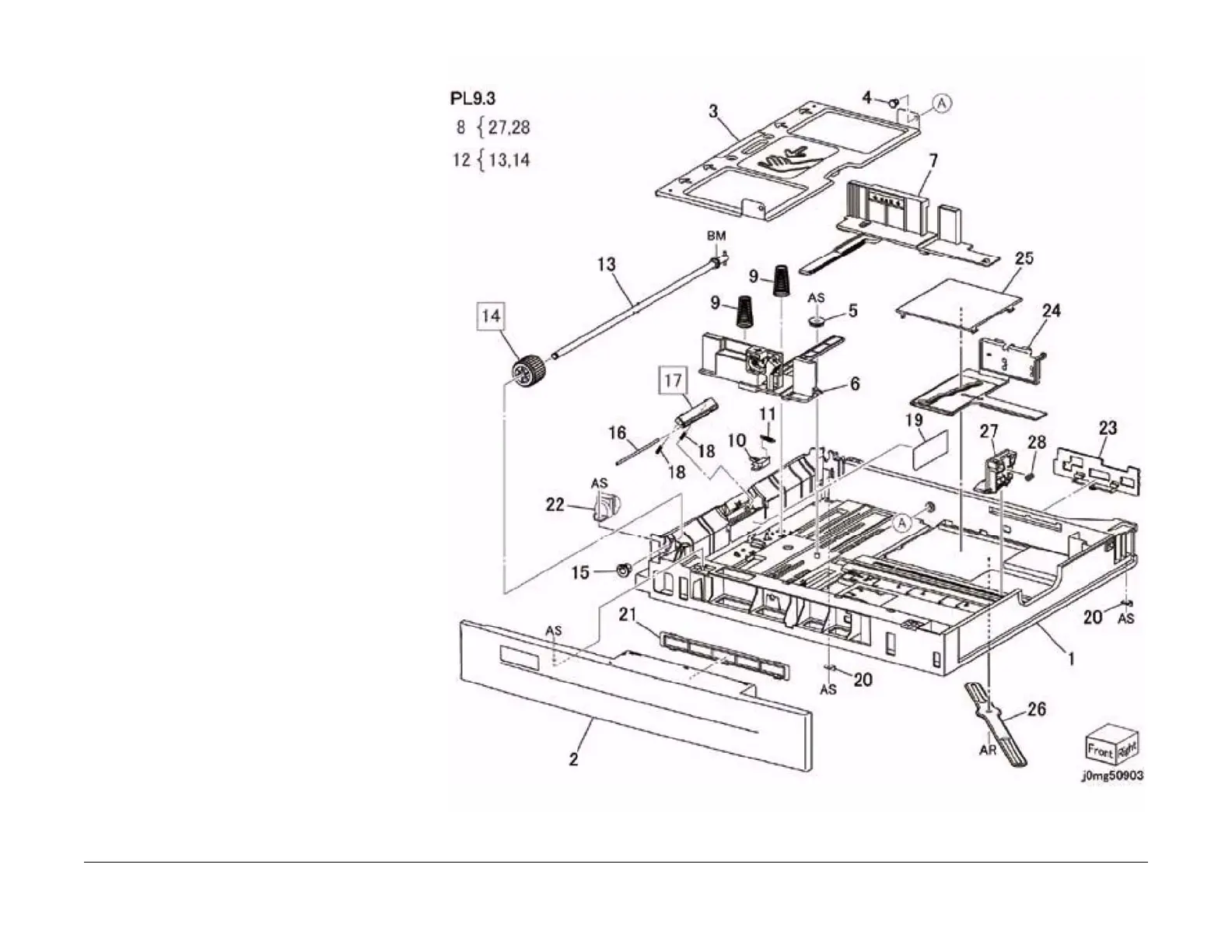

PL 9.3 Tray 1 Component
Item Part Description
1 Tray Housing
2 848E84353 Tray Cover
3 815K09820 Bottom Plate
4 029E32810 Pivot
5 807E41440 Pinion Gear
6 038K21332 Side Front Guide
7 038K21980 Side Rear Guide
8 038K21640 End Guide Assembly (Item 27,28)
9 809E54160 Spring
10 003E60941 Stopper
11 809E54170 Spring
12 059K33051 Tray 1Feed Roll and Shaft (Item
13,14)
13 Shaft (P/O Item 12)
14 059K32773 Tray 1Feed Roll (REP 9.2.1)
15 013E25881 Bearing
16 006E79021 Retard Shaft
17 019K09420 Tray 1Retard Pad (REP 9.2.1)
18 809E27650 Spring
19 Paper Guide
20 803E15701 Stopper
21 848E85990 Inner Cover
22 Bearing Cover
23 120E23764 End Guide Actuator
24 120K92011 Side Actuator
25 802E62310 Actuator Cover
26 012E11810 End Link
27 038E27124 End Guide
28 809E47091 Spring
