06/2014
4-57
WC 5022/5024
Repairs and Asdjustments
Version 1.0

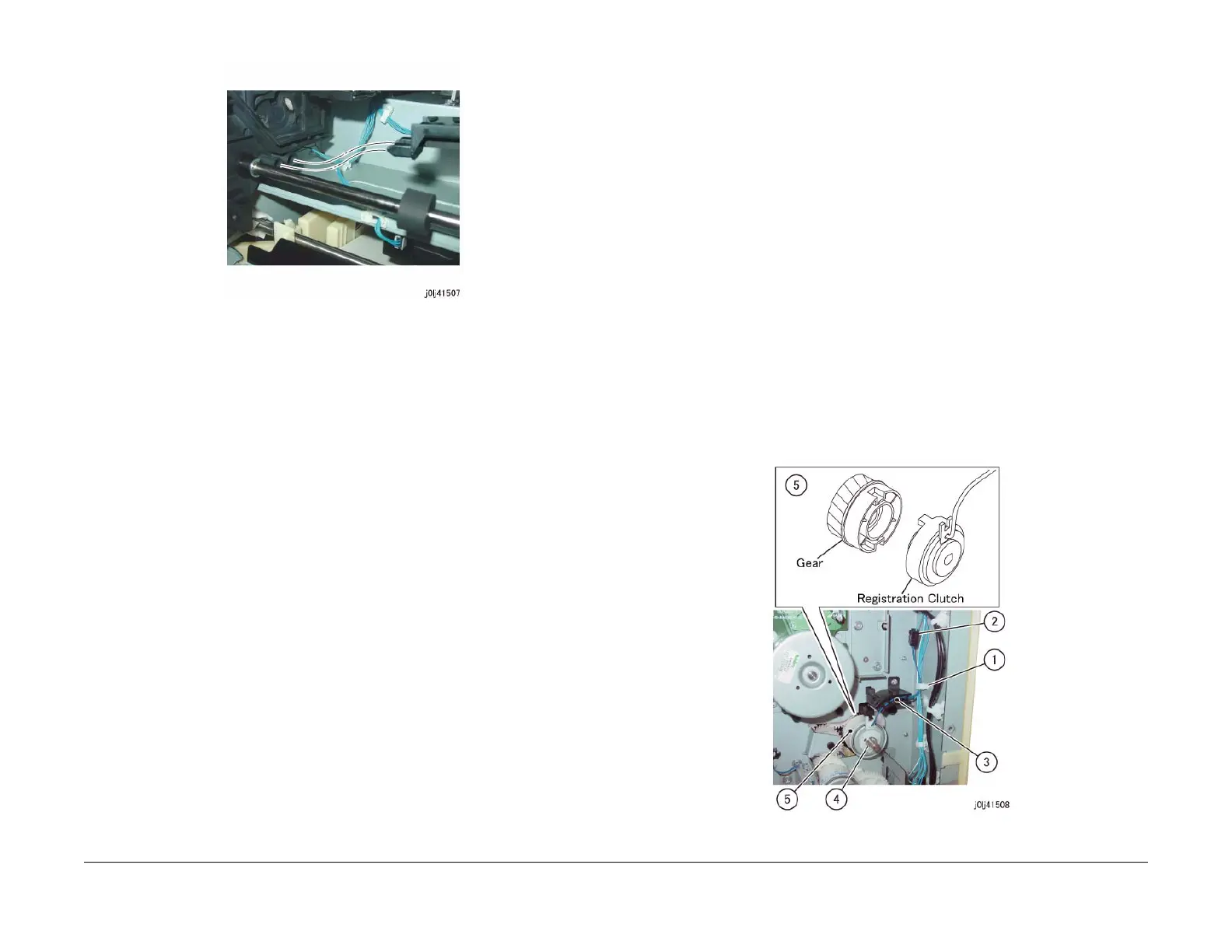

Figure 8 j0lj41507
REP 15.1.2 Registration Roll
Parts List on PL 15.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Front Cover. (REP 19.1.1)
3. Remove the MSI. (REP 13.1.1)
4. Remove the L/H Cover. (REP 14.1.1)
5. Remove the Registration Chute. (REP 15.1.1)
6. Remove the Rear Cover. (REP 19.4.1)
7. Remove the Registration Clutch. (Figure 1)
a. Release the wire harness from the clamp.
b. Disconnect the connector.
c. Remove the wire harness from the Harness Guide.
d. Remove the E-Clip.
e. Remove the Registration Clutch and the gear.
Figure 1 j0lj41508
To Next Page
