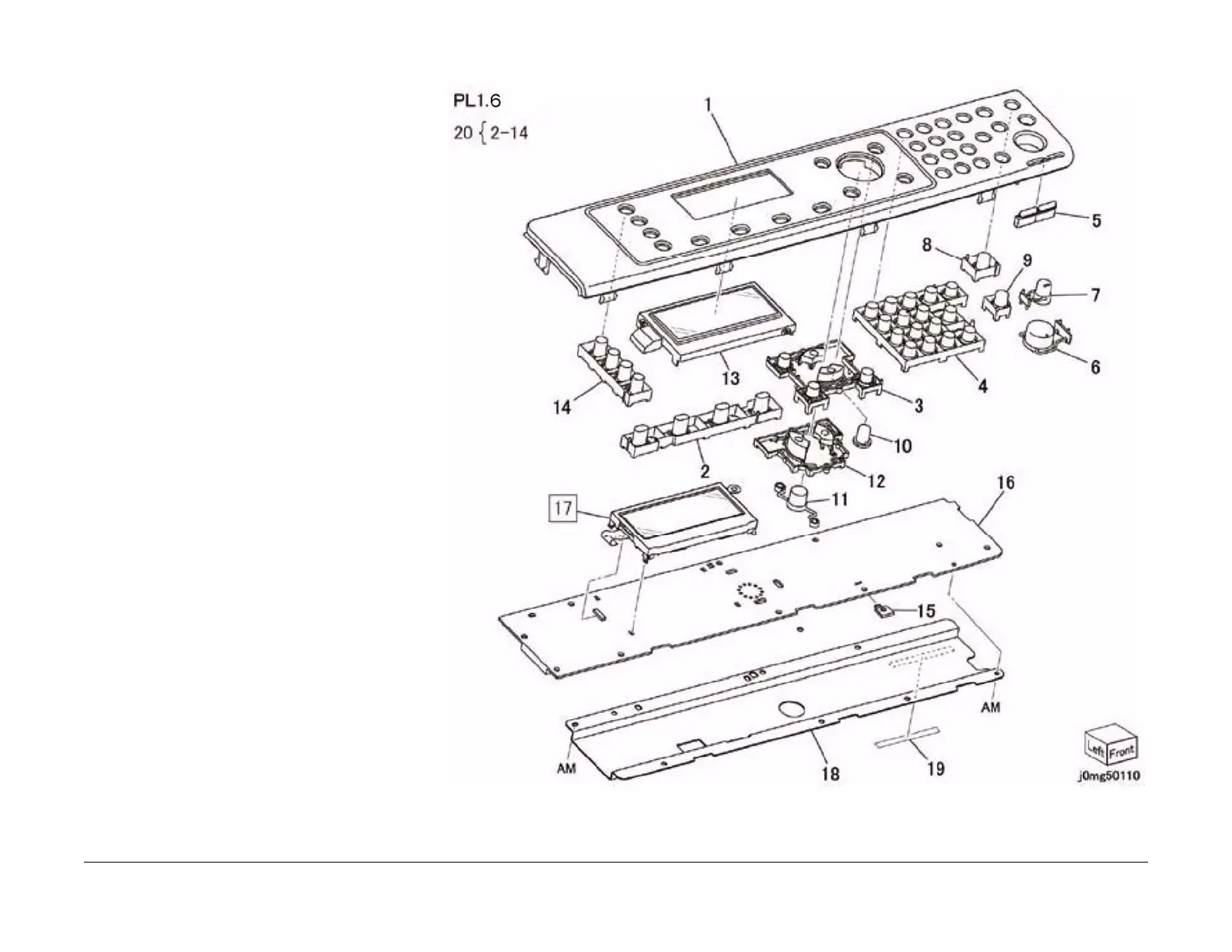

PL 1.6 Control Panel
Item Part Description
1 848K91750 Control Panel
2 – Service Key (P/O Item 20)
3 – Up/Down Key (P/O Item 20)
4 – Sixteen Key (P/O Item 20)
5 – LED Key (P/O Item 20)
6 803E16660 Start Key (P/O Item 20)
7 – Stop Key (P/O Item 20)
8 – Energy Saver Key (P/O Item 20)
9 – Reset Key (P/O Item 20)
10 – Login Key (P/O Item 20)
11 – OK Key (P/O Item 20)
12 – Right/Left Key (P/O Item 20)
13 – LCD Cover (P/O Item 20)
14 – Function Key (P/O Item 20)
15 803E17620 Terminal Earth
16 960K76800 UI PWB
17 123K09500 LCD Display (REP 1.10.1)
18 868E94540 UI Bracket
19 – UI Label
20 604K87280 Console Key Kit (Item 2-14)
