WC 5022/5024
PL 56.6
Version 1.0
Parts List

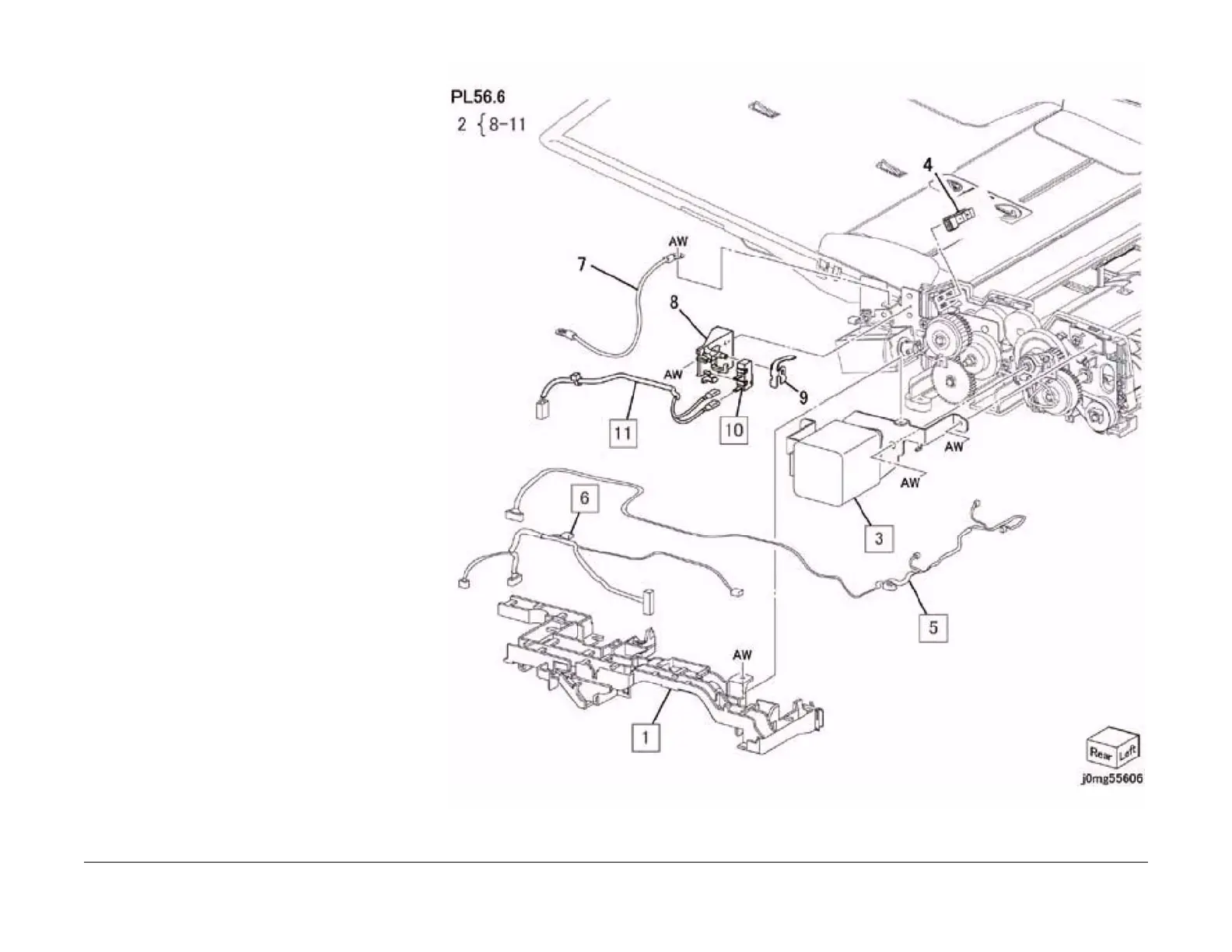

PL 56.6 DADF Feed Motor,Harness
Guide
Item Part Description
1 032E40210 Harness Guide (REP 56.6.1)
2 110K17140 DADF Feeder Cover Interlock
Switch Assembly (Item 8-11)
3 127K66690 DADF Feed Motor (REP 56.6.2)
4 930W00121 DADF Document Set Sensor
5 952K08460 Wire Harness (Sensor)
6 952K08440 Wire Harness (Motor/Clutch)
7 117K38961 Ground Wire
8 – Bracket (P/O Item 2)
9 – Spring (P/O Item 2)
10 – DADF Feeder Cover Interlock
Switch (P/O Item 2)
11 – Wire Harness (P/O Item 2)
