WC 5022/5024
PL 15.1
Parts List
Version 1.0

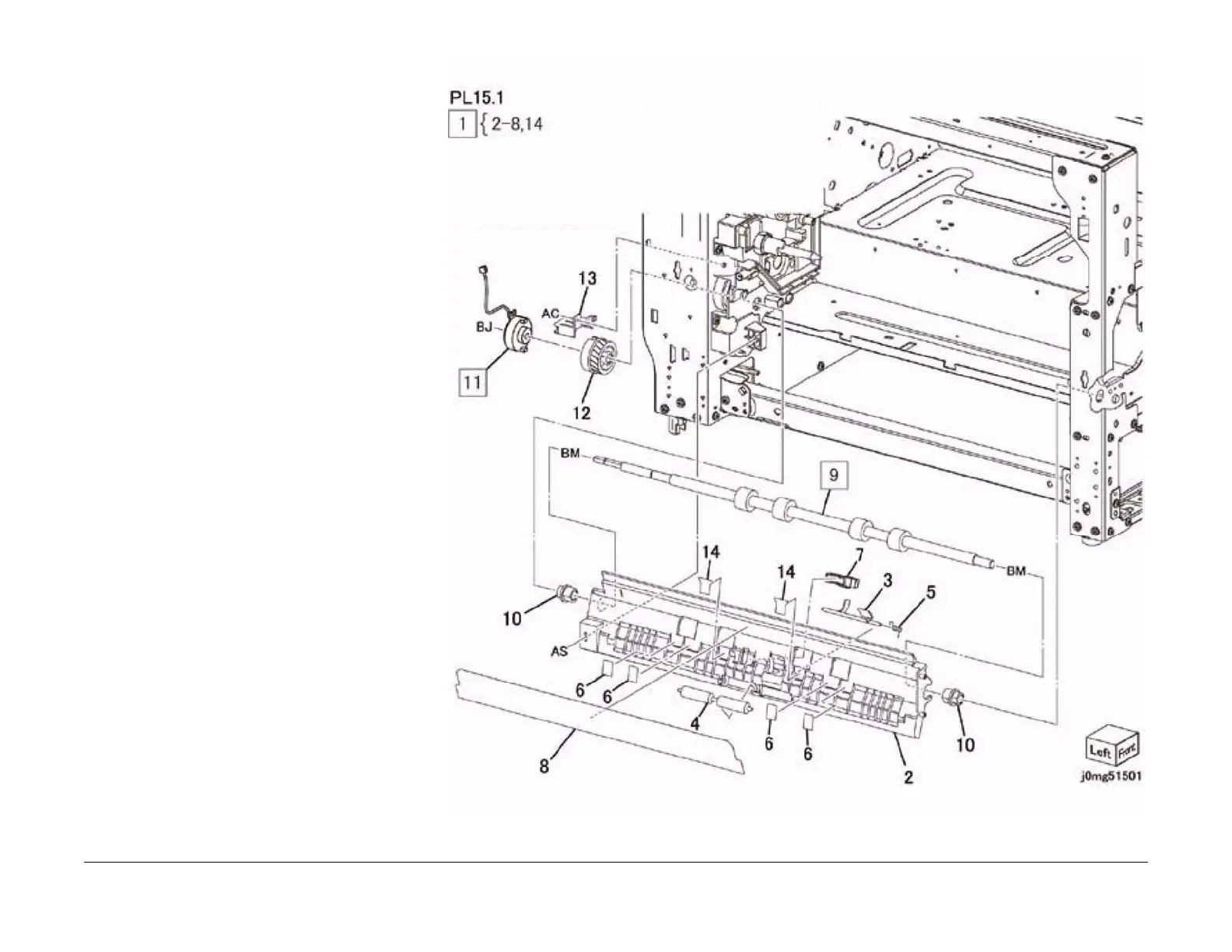

PL 15.1 Registration
Item Part Description
1 059K74901 Registration Chute (Item 2-8,14)
(REP 15.1.1)
2 – Registration Chute (P/O Item 1)
3 120E34050 Actuator
4 059E98590 Idler Roll
5 809E99570 Spring
6 – Paper Guide (P/O Item 1)
7 930W00123 Registration Sensor
8 – Film Chute (P/O Item 1)
9 059K74891 Registration Roll (REP 15.1.2)
10 013E40990 Bearing
11 121K52340 Registration Clutch
12 807E40940 Helical Gear
13 032E41320 Harness Guide
14 – Paper Guide C (P/O Item 1)
