Xerox WorkCentre 5024

06/2014
5-36
WC 5022/5024
PL 11.7
Version 1.0
Parts List

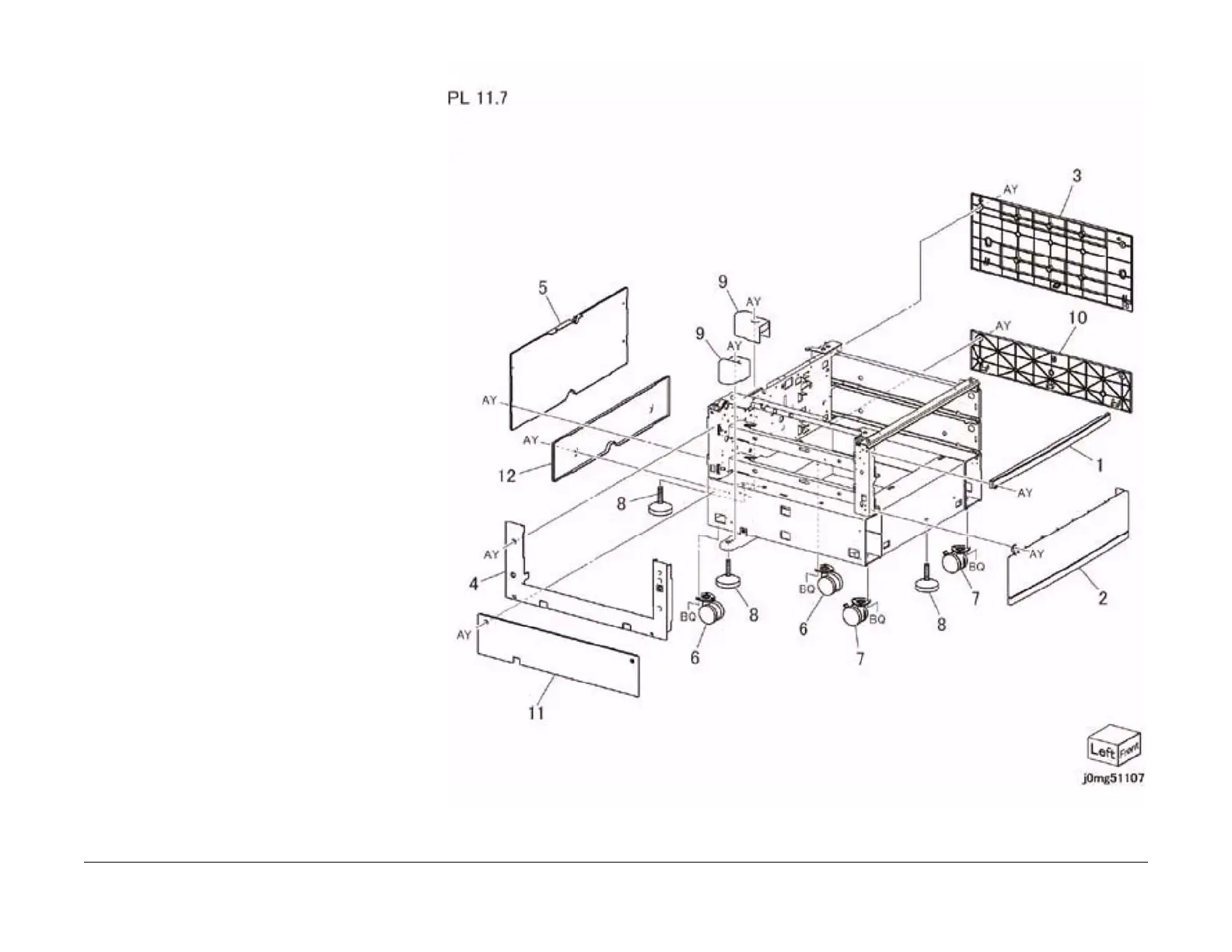

PL 11.7 Cover
Item Part Description
1 802E54731 Top Cover
2 – Front Lower Cover
3 802E54750 Right Upper Cover
4 802E54762 Left Upper Cover
5 802E54771 Rear Upper Cover
6 017K93121 Caster
7 017K93132 Caster (Stopper)
8 – Foot
9 – Cover
10 – Right Lower Cover
11 – Left Lower Cover
12 – Rear Lower Cover
