06/2014
5-13
WC 5022/5024
PL 3.1
Parts List
Version 1.0

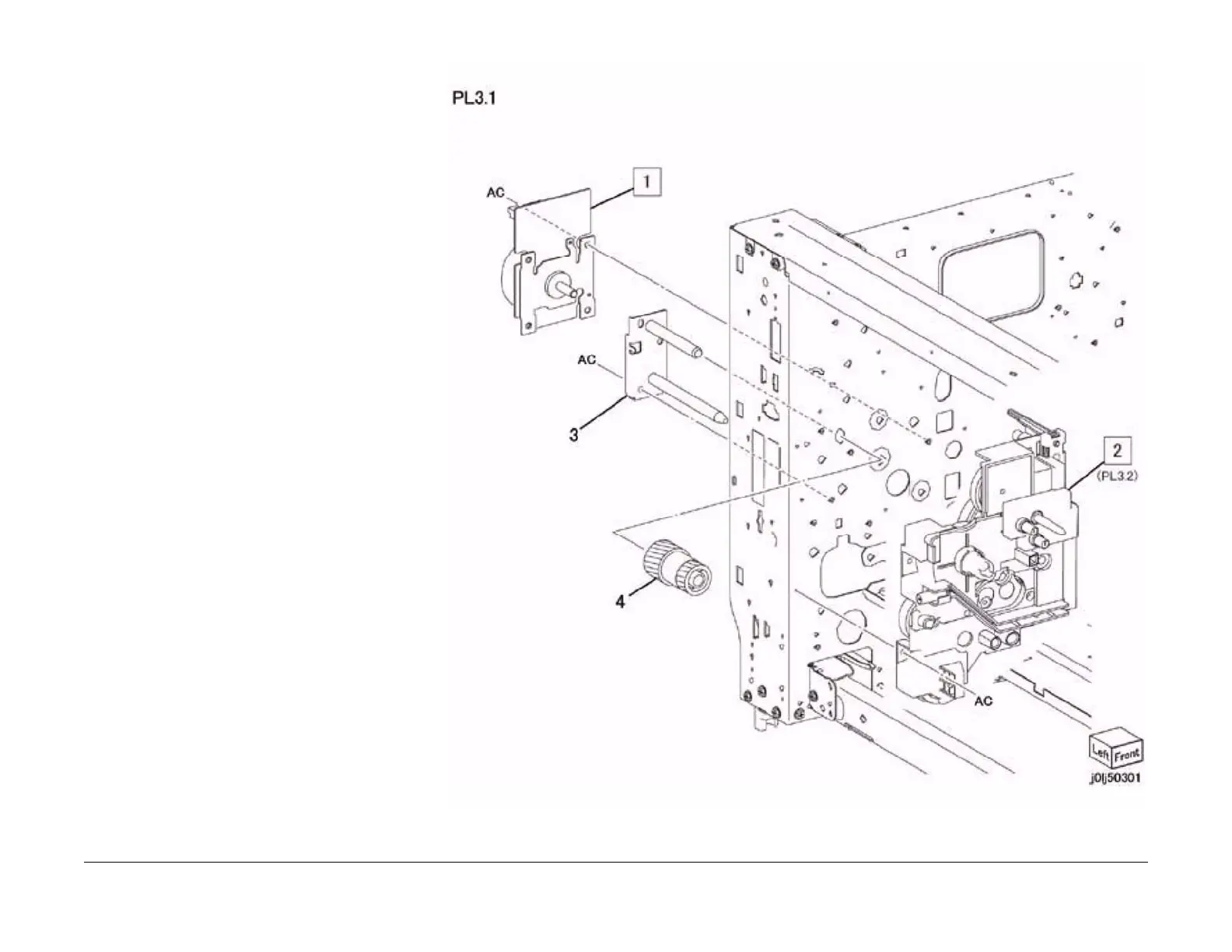

PL 3.1 Main Drive Motor
Item Part Description
1 127K66290 Main Drive Motor (REP 3.1.1)
2 007K98390 Main Drive Housing (PL 3.2) (REP
3.1.2)
3 049K17710 Stud Bracket
4 807E39260 Helical Gear
