Xerox WorkCentre 5024

06/2014
5-63
WC 5022/5024
PL 56.13
Parts List
Version 1.0

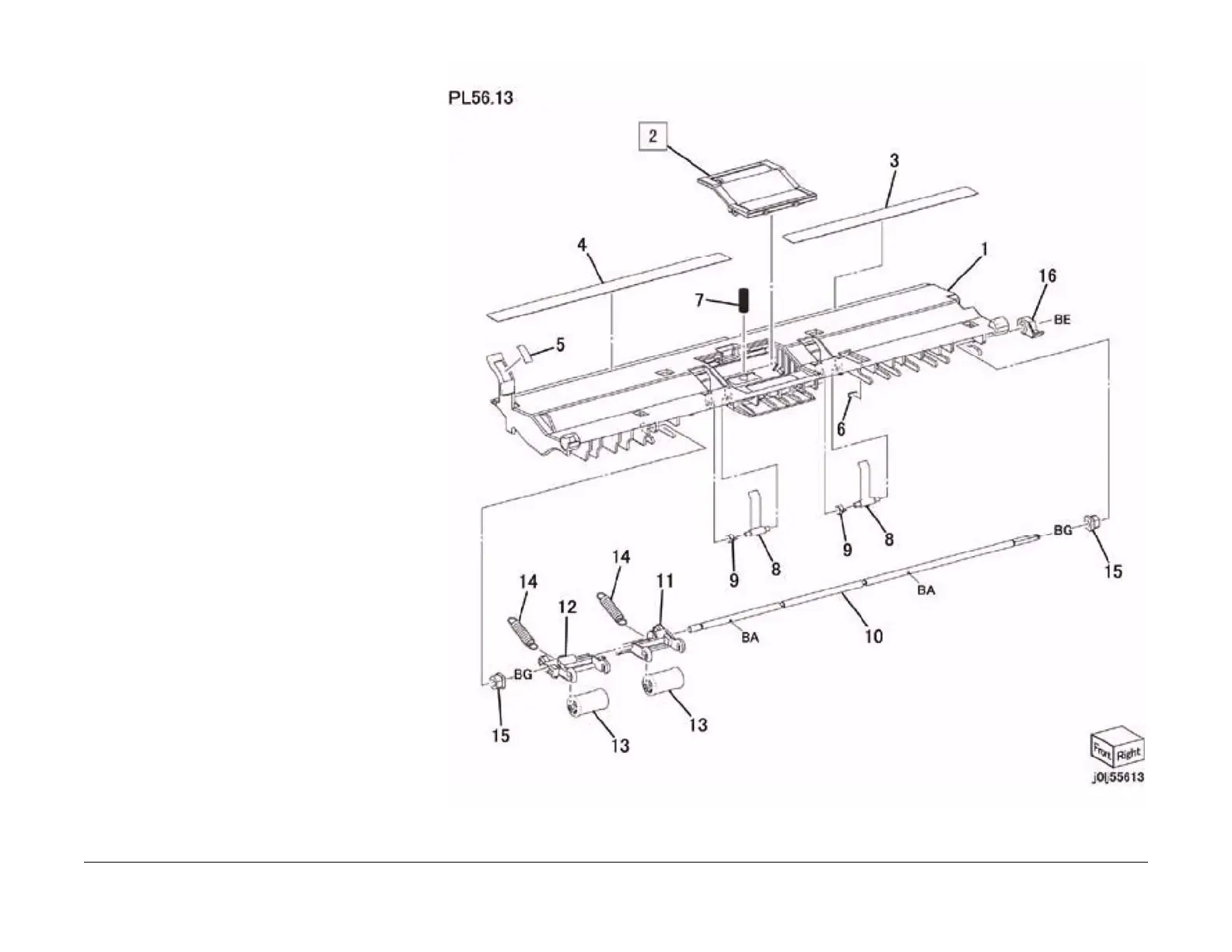

PL 56.13 Retard Chute
Item Part Description
1 054E50171 Retard Chute
2 848K68731 DADF Retard Pad (REP 56.13.1)
3 035K84270 Rear Seal
4 035K84260 Front Seal
5 – Label
6– Pad
7 899E01520 Spring
8 050E28270 Set Gate
9 899E01510 Spring
10 – Shaft
11 019E84132 Rear Holder
12 019E84120 Front Holder
13 059E08661 Pinch Roll
14 899E01531 Spring
15 413W11460 Bearing
16 012E18280 Link
