Xerox WorkCentre 5024

06/2014
7-30
WC 5022/5024
2. Symbology
Version 1.0
Wiring Data
3. Signal Name

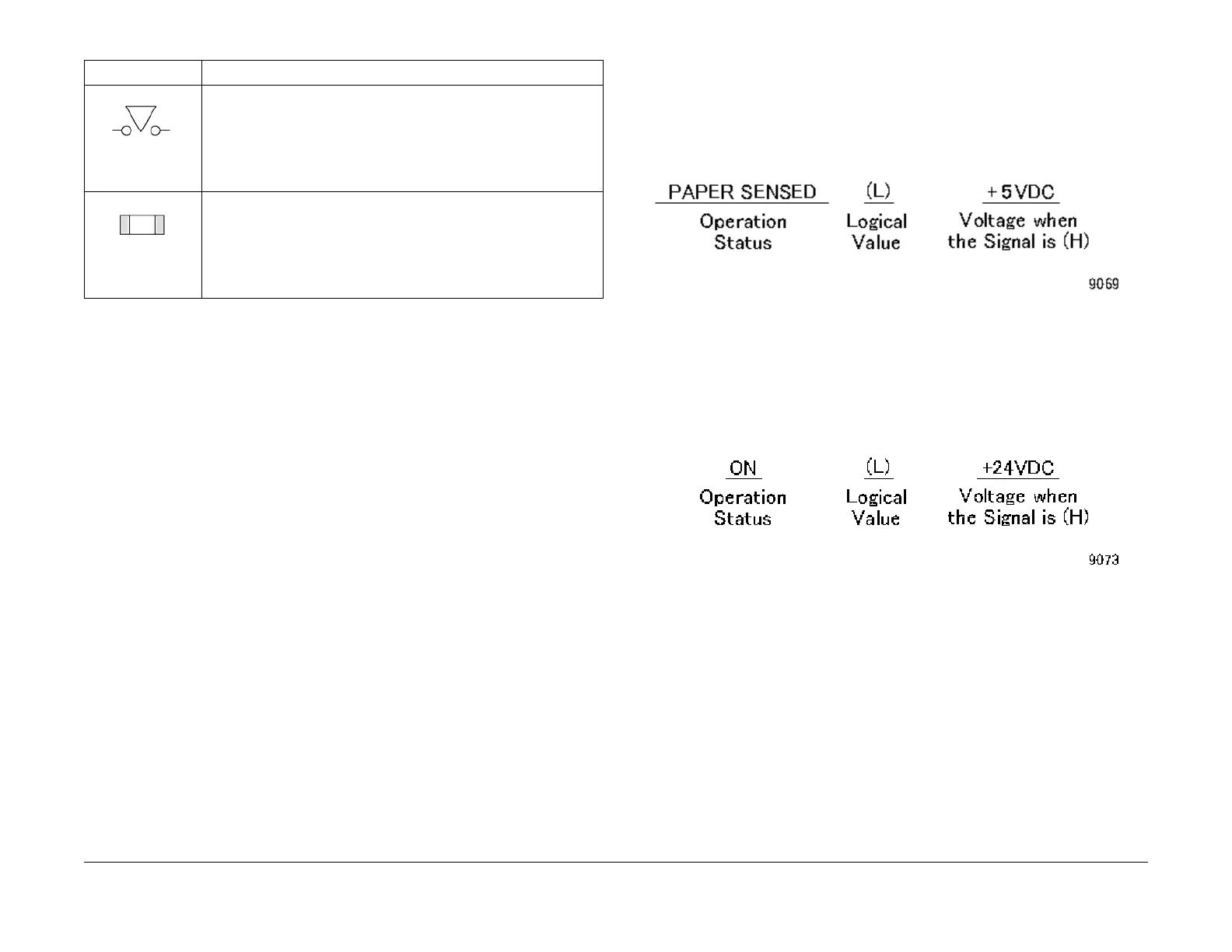

Signal Name Structure
• Input Component
Figure 1 9069
The example indicates that when paper is sensed, the signal level is (L) and that when
paper is not sensed, the signal level is (H) with the voltage +5VDC.
• Output Component
Figure 2 9073
The example indicates that when the component is ON, the signal level is (L) and that
when it is OFF, the signal level is (H) with the voltage +24VDC.
Figure 35 9076
This symbol shows the Cheater type of Interlock Switch.
Figure 36 9077
This symbol shows the Chip Fuse.
Table 1
Symbol Description
