REP 56.13.1 DADF Retard Pad
Parts List on PL 56.13
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The DADF Retard Pad, the DADF Feed Roll, and the DADF Nudger Roll must be
replaced at the same time.
1. Open the Upper Feeder.
2. Remove the DADF Retard Pad. (Figure 1)
a. Release the hook, open the DADF Retard Pad, and then remove the DADF Retard
Pad.

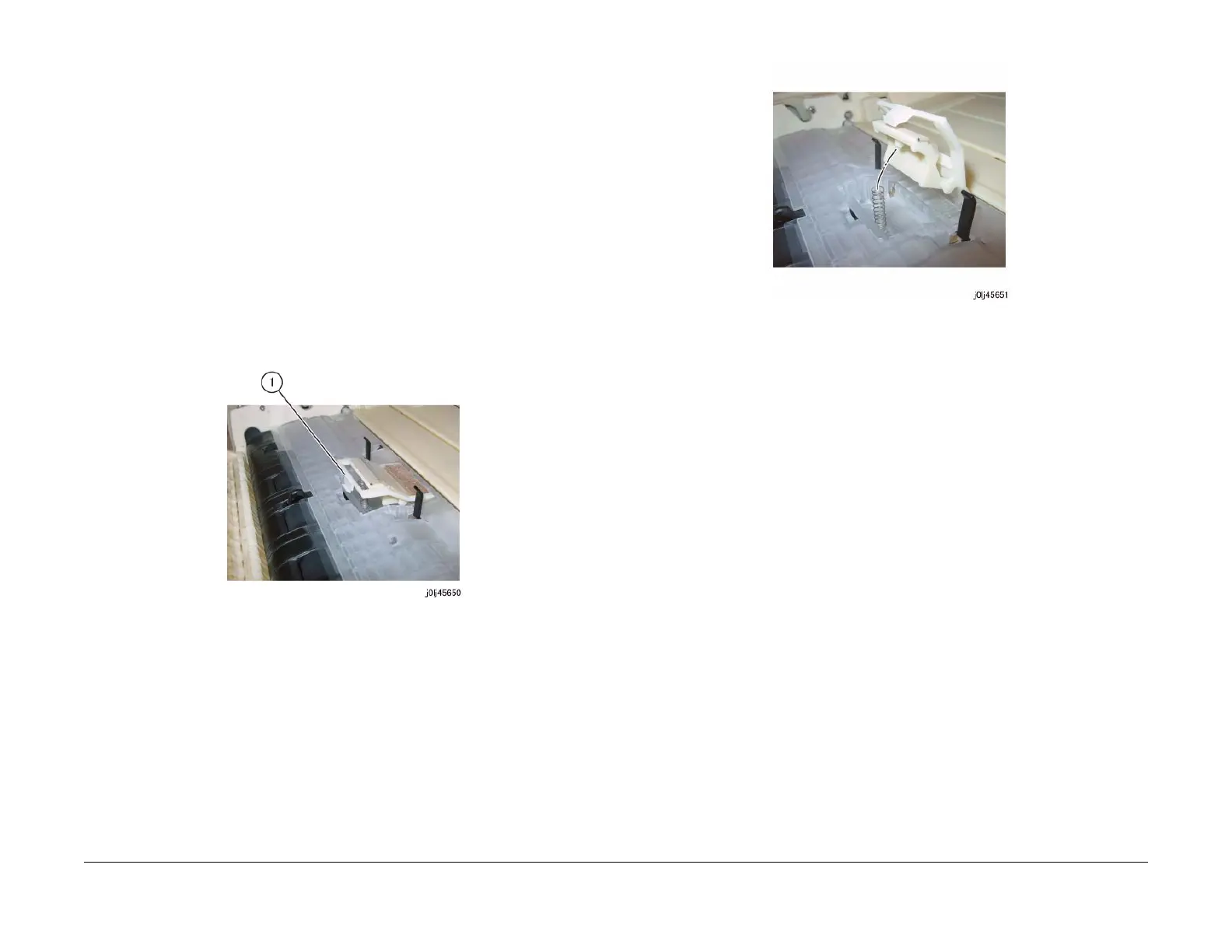

Figure 1 j0lj45650
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the DADF Retard Pad, attach the spring to the boss of the DADF Retard
Pad. (Figure 2)
Figure 2 j0lj45651
3. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 955-806"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
