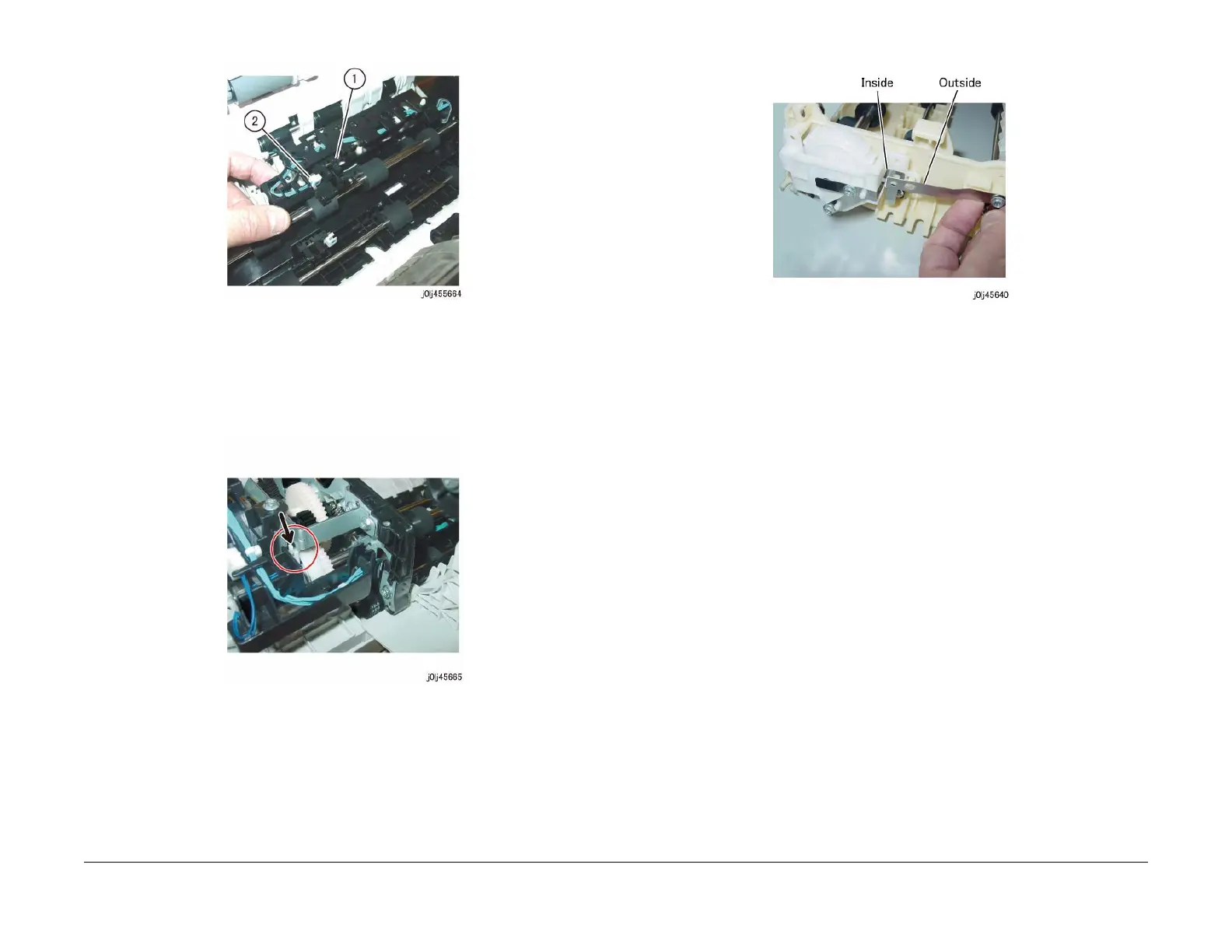

Figure 8 j0lj45664
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Bearing of the DADF Takeaway Roll, align the Cutout of the DADF
Takeaway Clutch at the Rear side to the Tab of the Bracket of the DADF Feed Motor. (Fig-
ure 9)
Figure 9 j0lj45665
3. When installing the Bracket and Ground Plate, install the Ground Plate as shown in the
figure. (Figure 10)
Figure 10 j0lj45640
