06/2014
3-25
WC 5022/5024
3.4 Fusing Unit Paper Wrinkle Alignment Adjustment
Image Quality Troubleshooting
Version 1.0

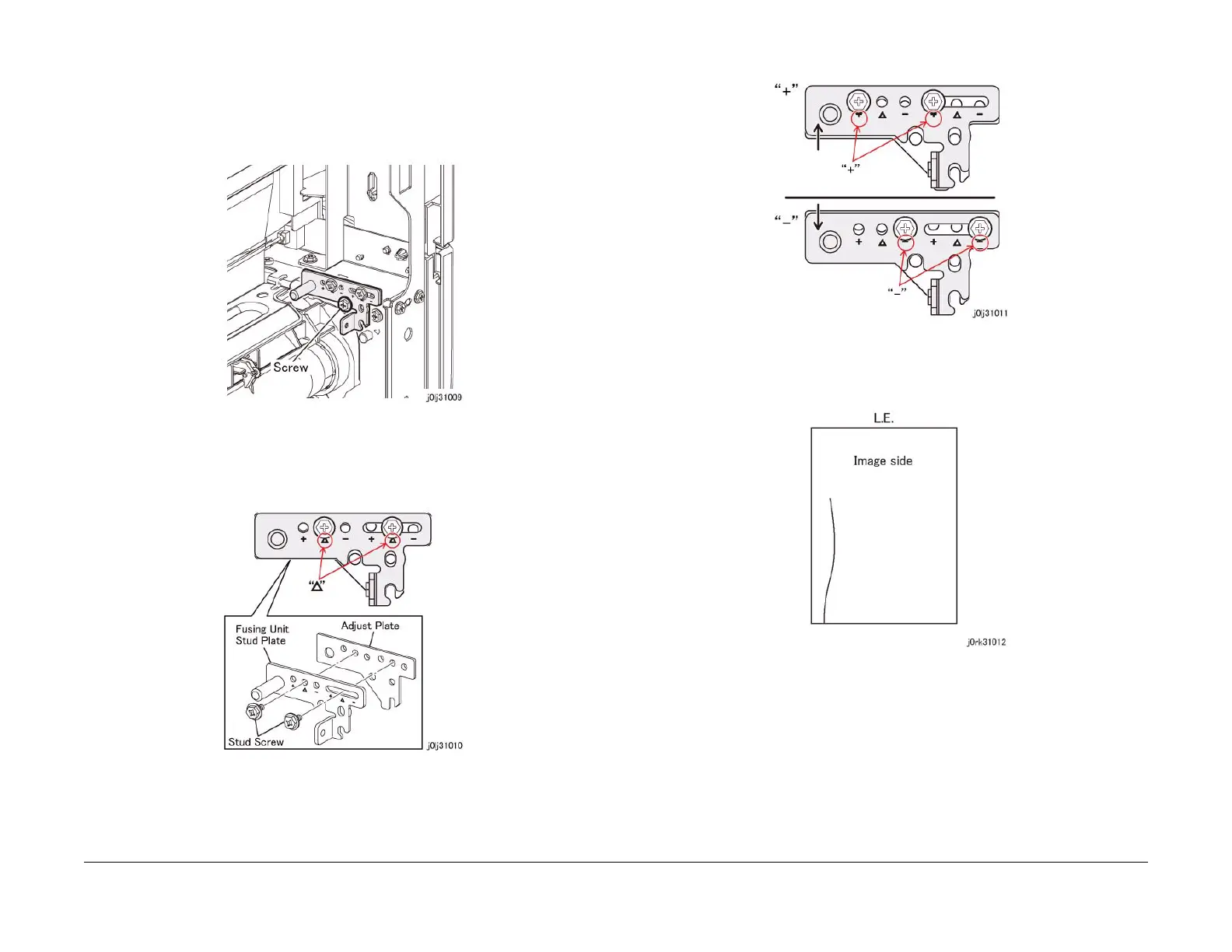

3.4 Fusing Unit Paper Wrinkle Alignment Adjustment
[Procedure]
1. Installation/removal of Adjustment Bracket
a. Remove the Fusing Unit.
b. Remove the front screw of the Adjustment Bracket at the front.
Figure 1 j0lj31009
2. Assembly of Adjustment Bracket
a. Parts Configuration
• At shipment (+/- 0 mm): Triangle mark
Figure 2 j0lj31010
b. Depending on the case, assemble the Fusing Unit Stud Plate and the Adjust Plate
such that the surface with the triangle marks ( +, -) is at the top.
• Plus (+0.5 mm) state: '+' mark
Minus (-0.5 mm) state: '-' mark
Figure 3 j0lj31011
3. Adjustment Method
a. If the wrinkle is at the front, use '-'.
Figure 4 j0rk31012
b. If the wrinkle is at the rear, use '+'.
To Next Page
