Xerox WorkCentre 5024

06/2014
5-26
WC 5022/5024
PL 10.4
Version 1.0
Parts List

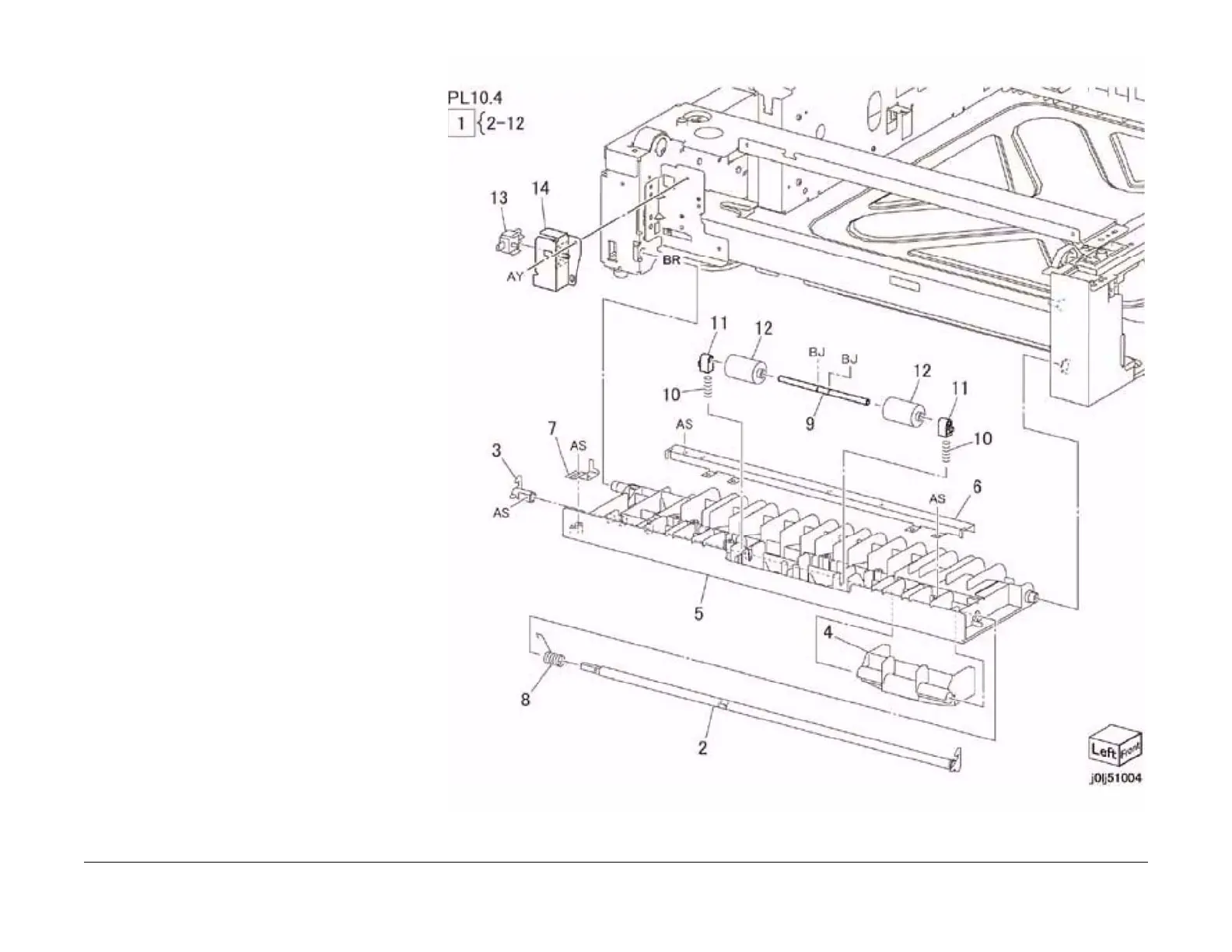

PL 10.4 Left Cover
Item Part Description
1 802K57026 Left Cover Assembly (Item 2-12)
2 003E59630 Latch
3 003E59640 Hook
4 011E14481 Handle
5 – Left Cover (P/O Item 1)
6 054E23421 Chute
7 120E22240 Actuator
8 809E54501 Spring
9 – Shaft (P/O Item 1)
10 809E54590 Spring
11 013E26100 Bearing
12 059E99241 Pinch Roll
13 110E12220 STM Left Cover Switch
14 030K75511 Bracket Assembly
