7-89
WC 5022/5024
7.4.7 Sensor Location (IOT Rear)
Wiring Data
Version 1.0
7.4.7 Sensor Location (IOT Rear)

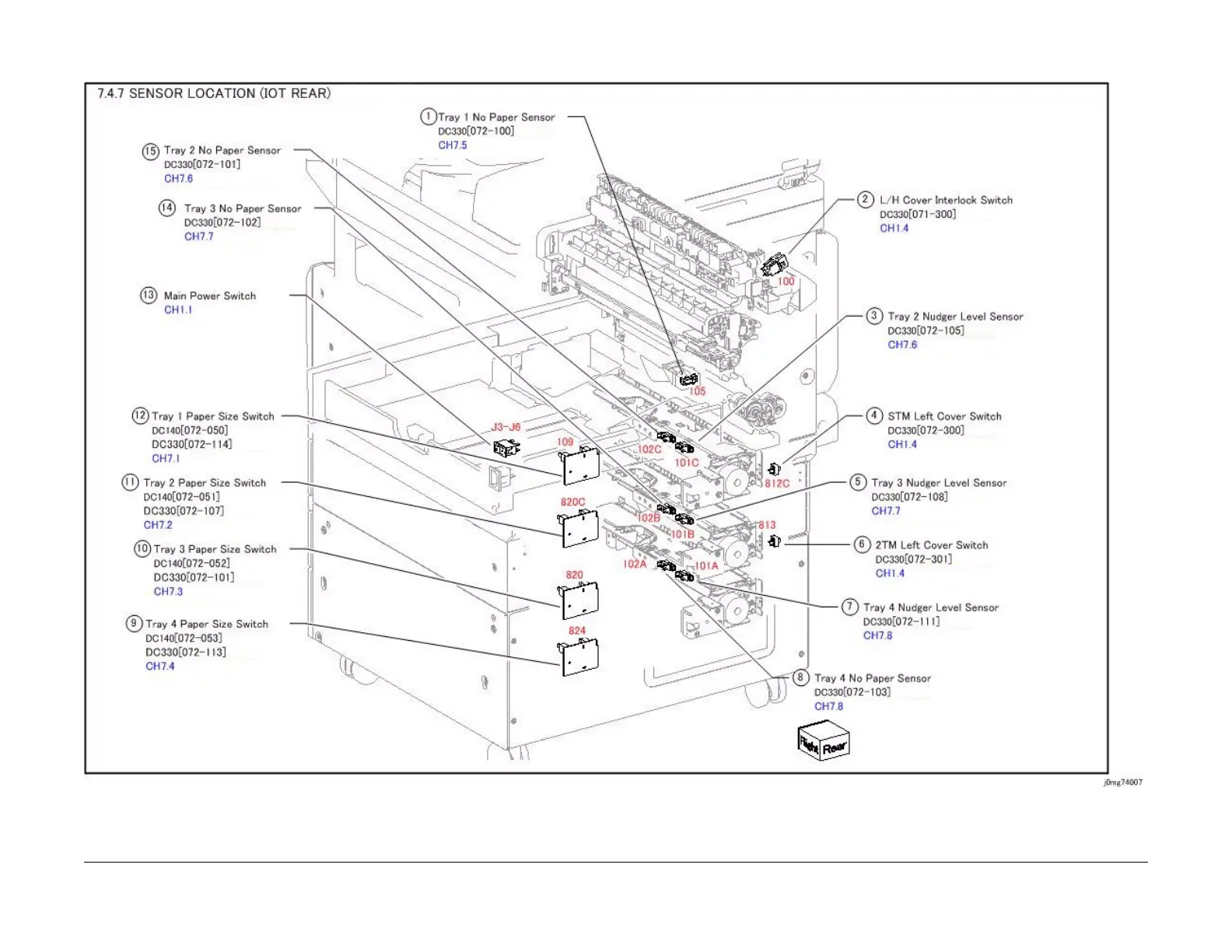

Figure 1 j0mg74007
CH7.6
CH7.7
CH7.5
CH1.1
CH7.1
CH7.2
CH7.3
CH1.4
CH7.6
CH7.7
CH7.8
CH7.4
CH1.4
CH1.4
CH7.8
