Xerox WorkCentre 5024

06/2014
5-44
WC 5022/5024
PL 17.1
Version 1.0
Parts List

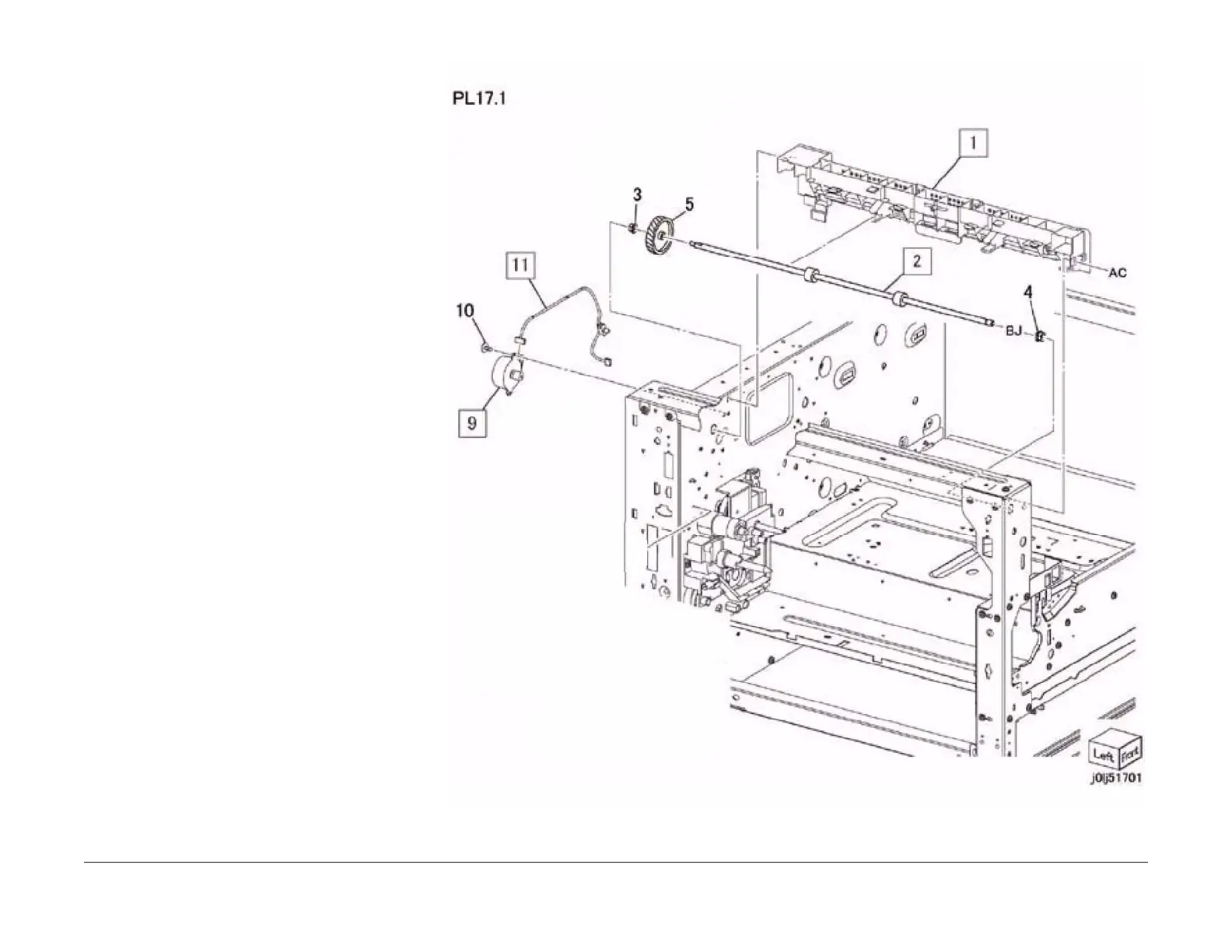

PL 17.1 Duplex Exit
Item Part Description
1 848K68381 Exit Cover (REP 17.1.1)
2 059K74910 Exit Roll (REP 17.1.2)
3 413W14460 Bearing (d:4mm)
4 413W11660 Bearing (d:6mm)
5 807E39150 Helical Gear
9 127K66210 Inverter Motor
10 – Bind Head Screw
11 952K01160 Motor Wire Harness
