06/2014
5-48
WC 5022/5024
PL 18.5
Version 1.0
Parts List

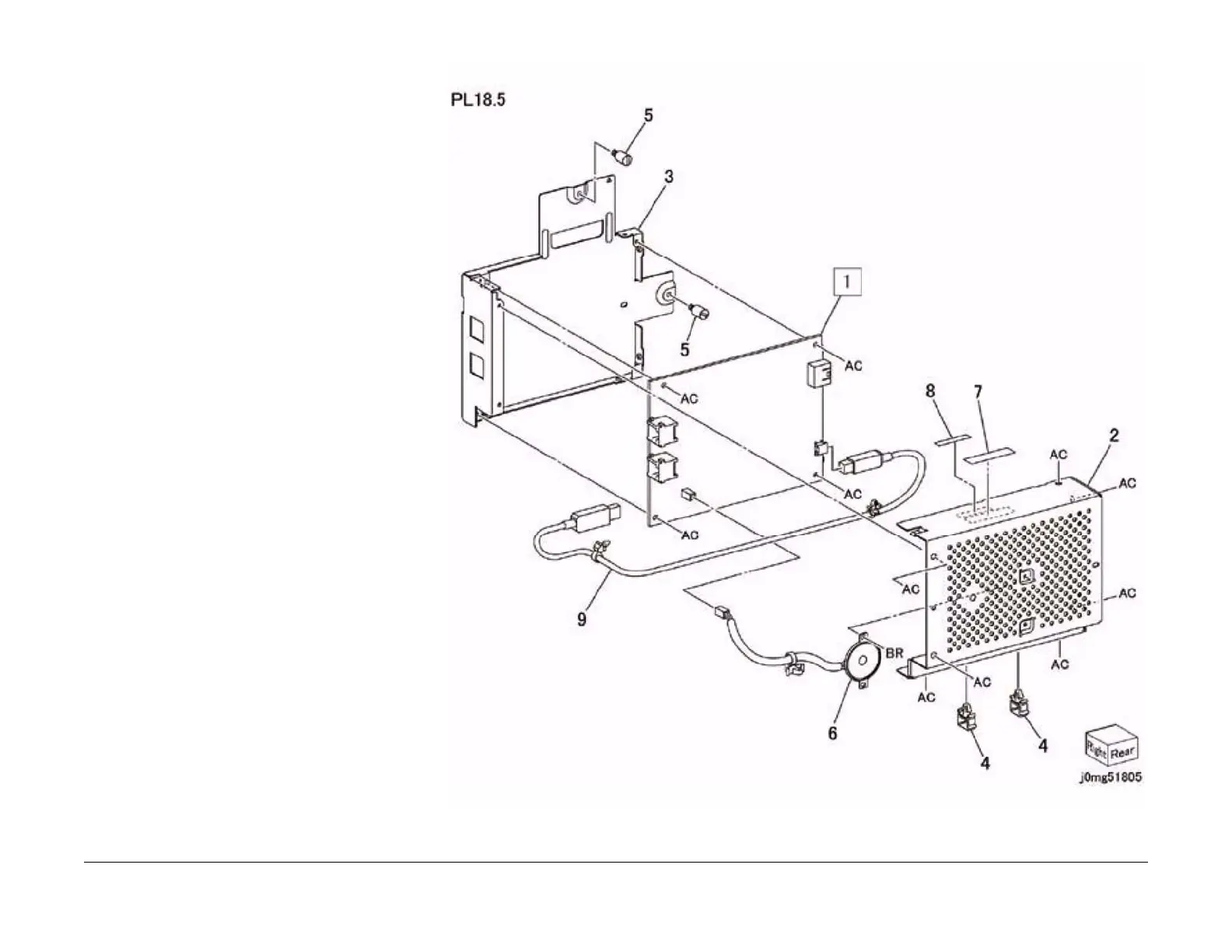

PL 18.5 Fax Box Assembly
Item Part Description
1 960K76940 Fax PWB
2 – Fax Top Cover
3– Fax Bottom
4 – Clamp
5– Screw
6 130K78820 Speaker
7 – Label
8 – Label
9 117K47650 USB Cable
