06/2014
5-53
WC 5022/5024
PL 56.3
Parts List
Version 1.0

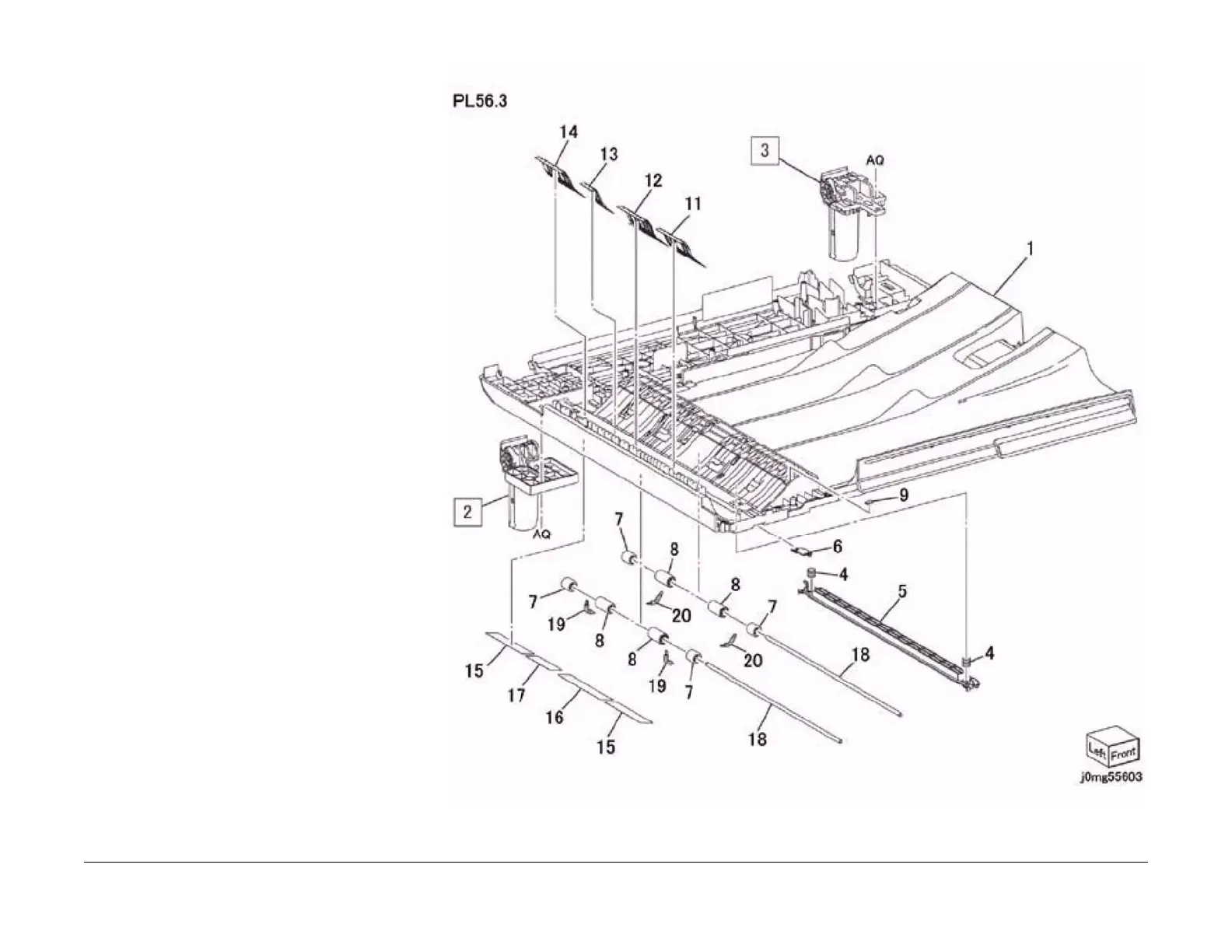

PL 56.3 DADF Base Frame
Item Part Description
1 – DADF Base Frame
2 036K92141 Left Counter Balance (REP 56.3.1)
3 036K92130 Right Counter Balance (REP
56.3.2)
4 809E86290 CVT Spring
5 – CVT Chute
6 803E13340 CVT Stopper
7 059E98711 Registration Pinch Roll (Short)
8 059E98701 Registration Pinch Roll (Long)
9 – Gate Pad
11 035K85290 Seal (Chute 2)
12 035K85320 Seal (Chute 3)
13 035K85330 Seal (Chute 4)
14 035K85341 Seal (Chute 5)
15 035K85380 Seal (B1)
16 035K85390 Seal (B2)
17 035K85400 Seal (B3)
18 – Shaft
19 899E01591 Spring (Hook:C,O)
20 899E01911 Spring (Hook:C,C)
To Next Page
