Xerox WorkCentre 5024 Service Manual

06/2014
5-57
WC 5022/5024
PL 56.7
Parts List
Version 1.0

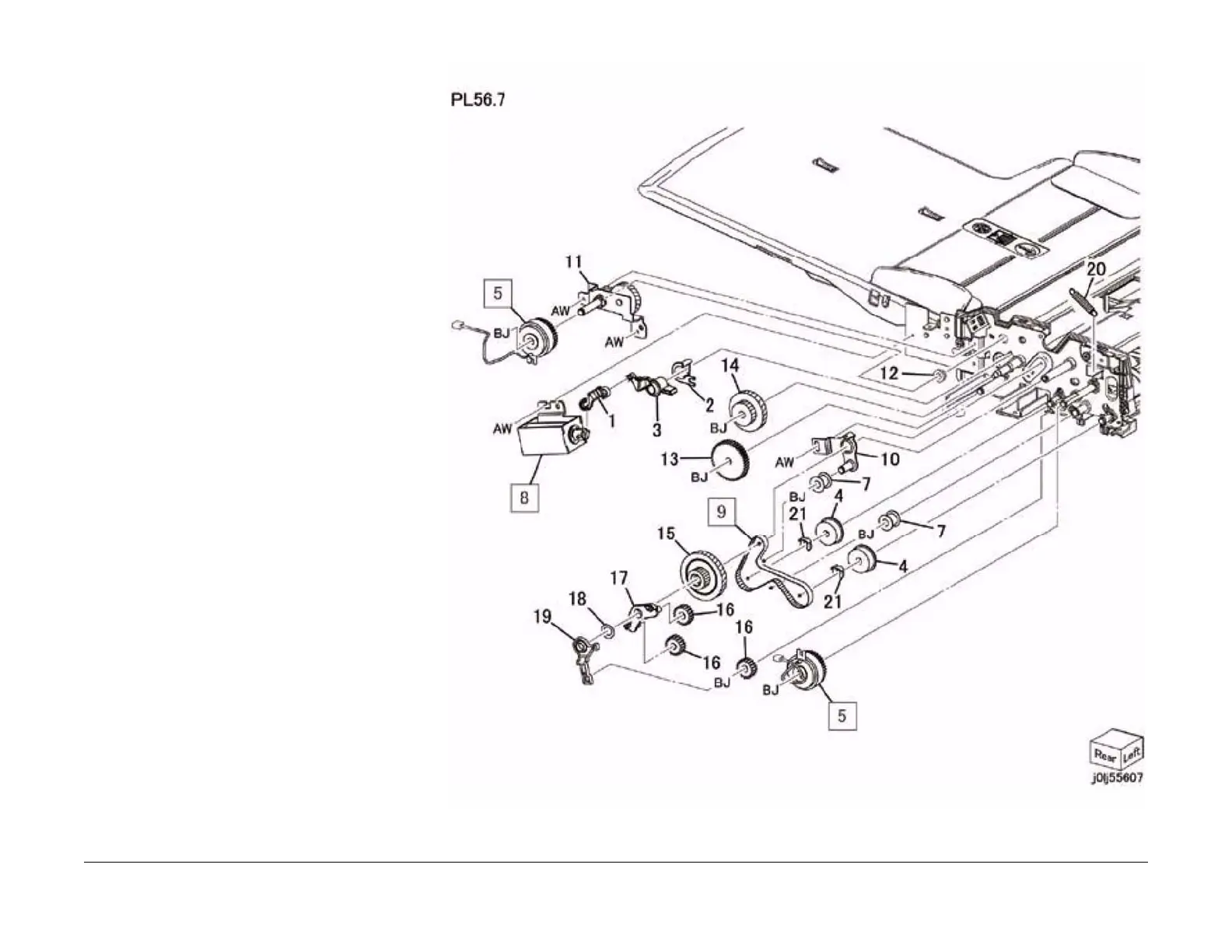

PL 56.7 DADF Feeder Rear Frame
Item Part Description
1 012E18260 Release Link
2 013E41200 Set Bearing
3 012E18270 Exit Link
4 020E46551 Pulley
5 121K52310 DADF Feed Clutch, DADF
Takeaway Clutch
7 – Roll
8 121K52470 Exit Nip Release Solenoid
9 423W32055 DADF Drive Belt (REP 56.7.1)
10 – Tension Bracket
11 049K18190 Clutch Gear and Bracket
12 413W85459 Bearing
13 807E40790 Gear (42T)
14 807E40800 Gear (40/24T)
15 807E40830 Gear Pulley
16 807E40840 Gear (19T)
17 868E80570 Bracket
18 899E01573 Washer
19 012E18290 Link
20 899E01581 Spring
21 – KL-Clip

Xerox WorkCentre 5024 Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	14 s
Print speed (black, normal quality, A3)	12 ppm
Print speed (black, normal quality, A4/US Letter)	24 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Copy speed (black, normal quality, A3)	12 cpm
Copy speed (black, normal quality, A4)	24 cpm
Scan to	E-mail, PC
Scan drivers	TWAIN
Scanner type	ADF scanner
Scan speed (black)	22 ppm
Scan speed (color)	13 ppm
Faxing	-
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	25000 pages per month
Recommended duty cycle	0 - 25000 pages per month
Number of print cartridges	2
Wi-Fi	No
Email protocols	SMTP
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Internal memory	256 MB
Standard interfaces	USB 2.0
Display	LCD
Product color	Gray
Market positioning	Business
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Paper input type	Paper tray
Total input capacity	350 sheets
Total output capacity	- sheets
Maximum input capacity	1850 sheets
Total number of input trays	5
Paper tray media types	Labels, Plain paper, Recycled paper
Paper tray media weight	60 - 90 g/m²
ISO A-series sizes (A0...A9)	A3, A4
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	574 mm
Width	594.3 mm
Height	581.6 mm
