Xerox WorkCentre 5024

06/2014
5-31
WC 5022/5024
PL 11.2
Parts List
Version 1.0

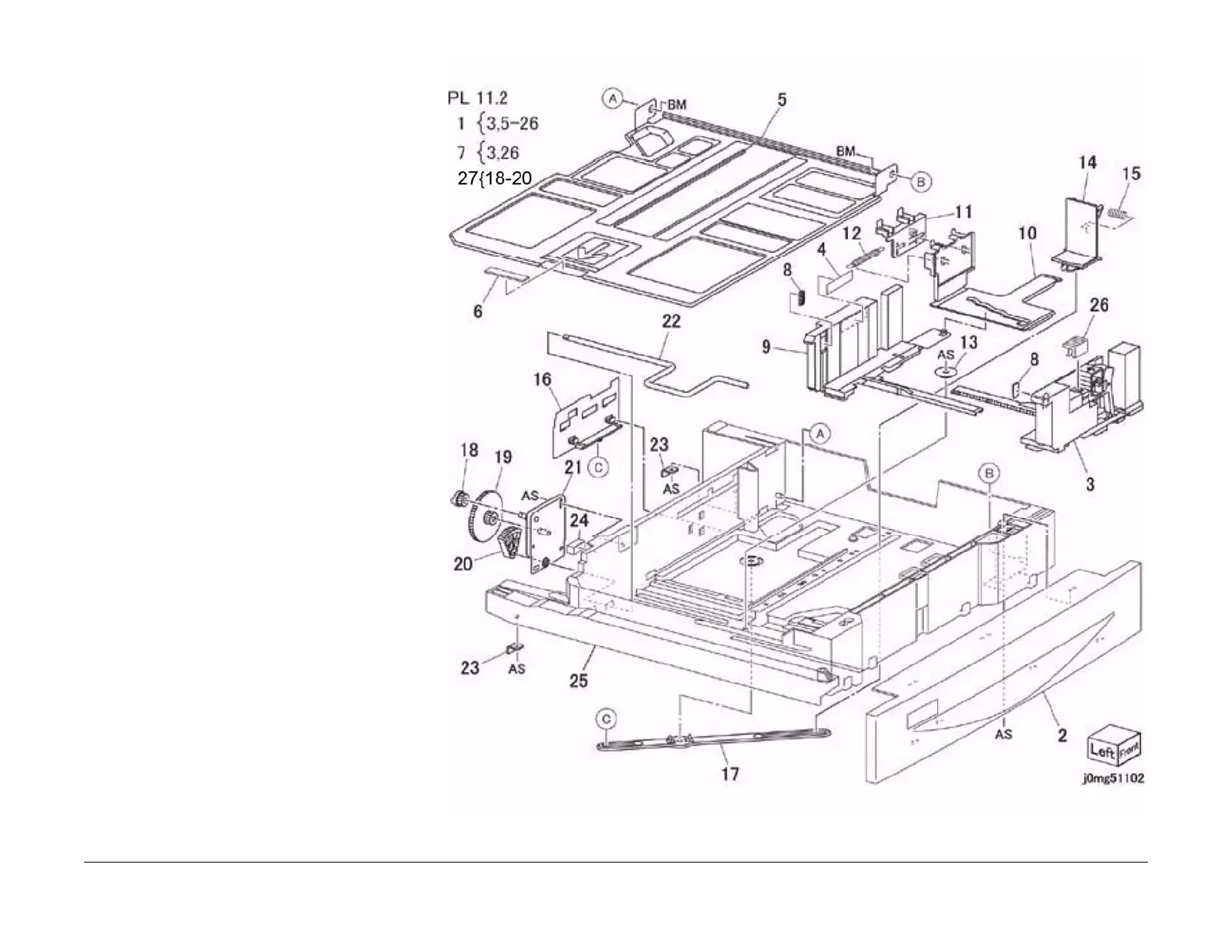

PL 11.2 Tray 3/4 Component
Item Part Description
1 – Tray 3/4 (Item 3,5-26)
2 802E54721 Tray Cover
3 – Front Side Guide (P/O Item 7)
4 – Label (Max) (P/O PL 11.1.17)
5 849E06322 Bottom Plate
6 019K07150 Bottom Pad
7 038K87114 Front Side Guide Assembly (Item 3,
26)
8 019E71680 Tray Pad
9 038E26550 Rear Side Guide
10 120E22040 Side Guide Actuator
11 120E22081 Guide Actuator
12 809E41880 Spring
13 807E13521 Pinion Gear
14 038E26533 End Guide
15 809E47091 Spring
16 120E22051 End Guide Actuator
17 012E11090 Link
18 – Coupling Gear (13T) (P/O Item 27)
19 – Gear (13T/60T) (P/O Item 27) )
20 – Sector Gear (60T) (P/O Item 27)
21 – Bracket
22 – Lift Up Shaft
23 – Stopper
24 – Seal
25 – Tray (P/O Item 1)
26 – Slide Lock (P/O Item 7)
27 604K20541 Gear Kit
