06/2014
4-66
WC 5022/5024
Version 1.0
Repairs and Asdjustments

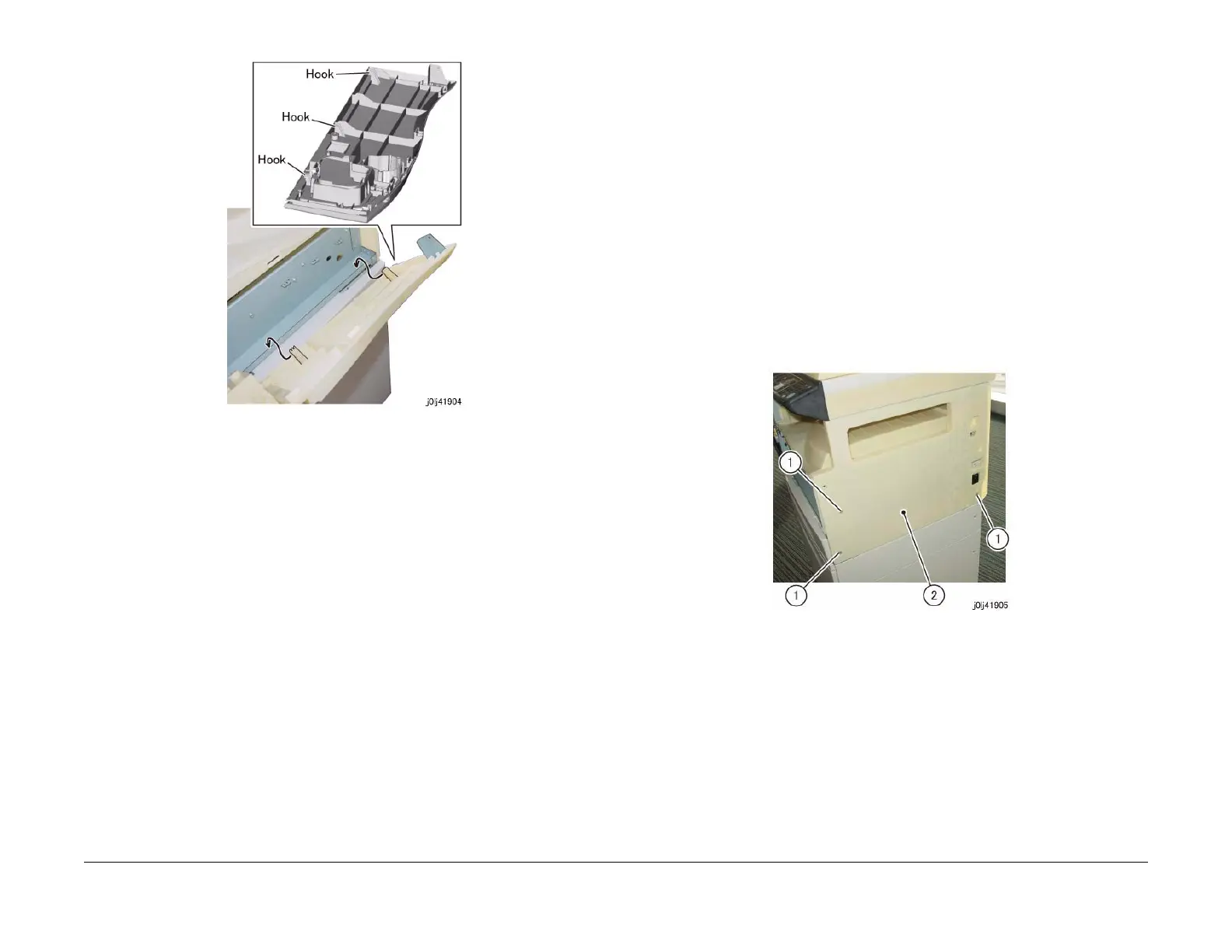

Figure 4 j0lj41904
REP 19.1.2 Top Cover
Parts List on PL 19.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Toner Cartridge. (PL 8.1)
3. Remove the Front Cover. (REP 19.1.1)
4. Pull out Tray 1 slightly.
5. Remove the Right Cover. (Figure 1)
a. Remove the screw (x3).
b. Remove the Right Cover.
Figure 1 j0lj41905
6. Remove the Top Cover. (Figure 2)
a. Remove the Top Cover.
To Next Page
