Xerox WorkCentre 5024

06/2014
5-55
WC 5022/5024
PL 56.5
Parts List
Version 1.0

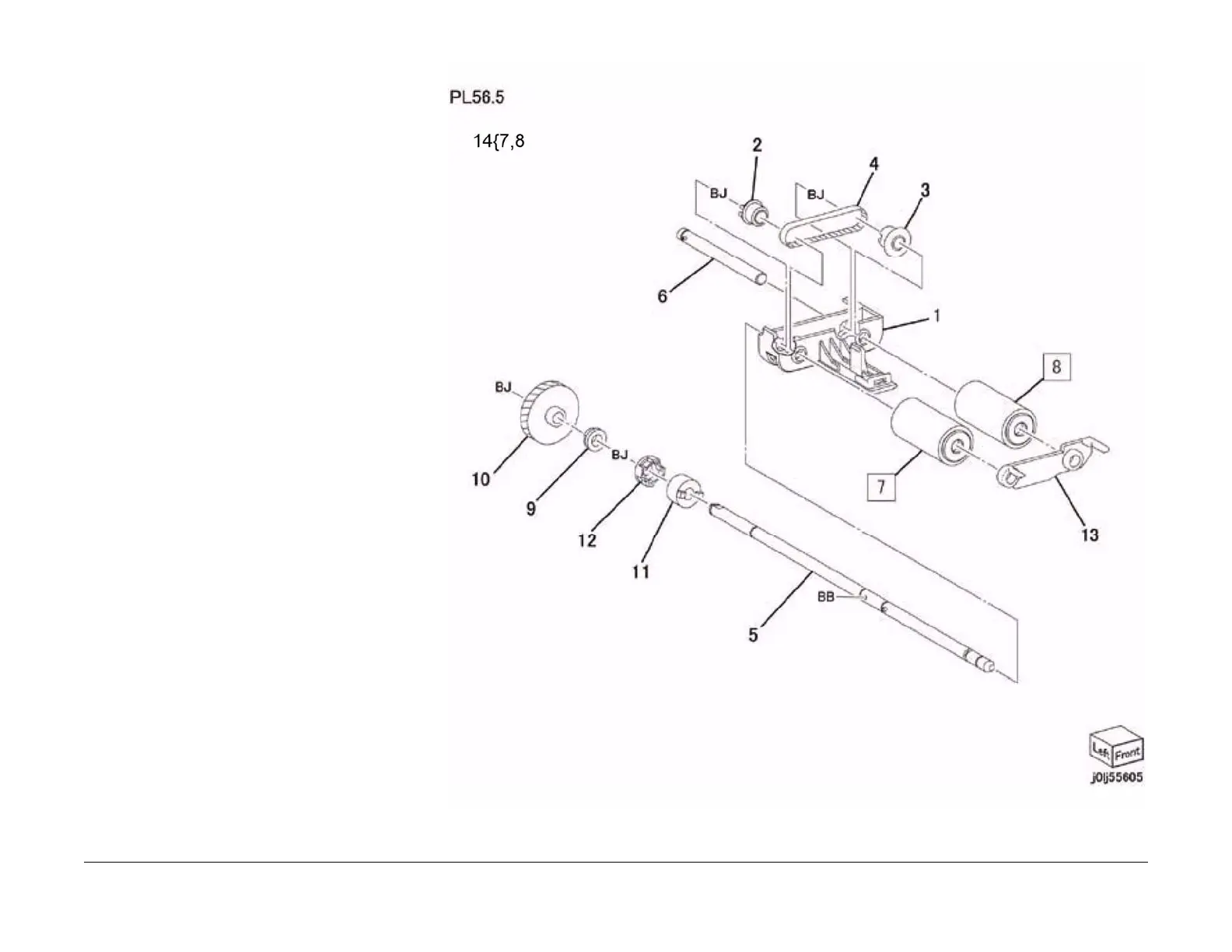

PL 56.5 Feed Roll Nudger Roll
Assembly
Item Part Description
1 – Housing
2 – Pulley (Feed)
3 – Pulley (Nudger)
4 423W05354 Belt
5 – Shaft (Feed)
6 – Shaft (Nudger)
7 – DADF Feed Roll (P/O Item 14)
(REP 56.5.1)
8 – DADF Nudger Roll (P/O Item 14)
(REP 56.5.1)
9 413W85459 Bearing
10 807E40760 Helical Gear
11 – Brake
12 – Brake Holder
13 – Housing
14 604K80750 DADF Feed/Nudger Roll Kit (Item
7,8)
